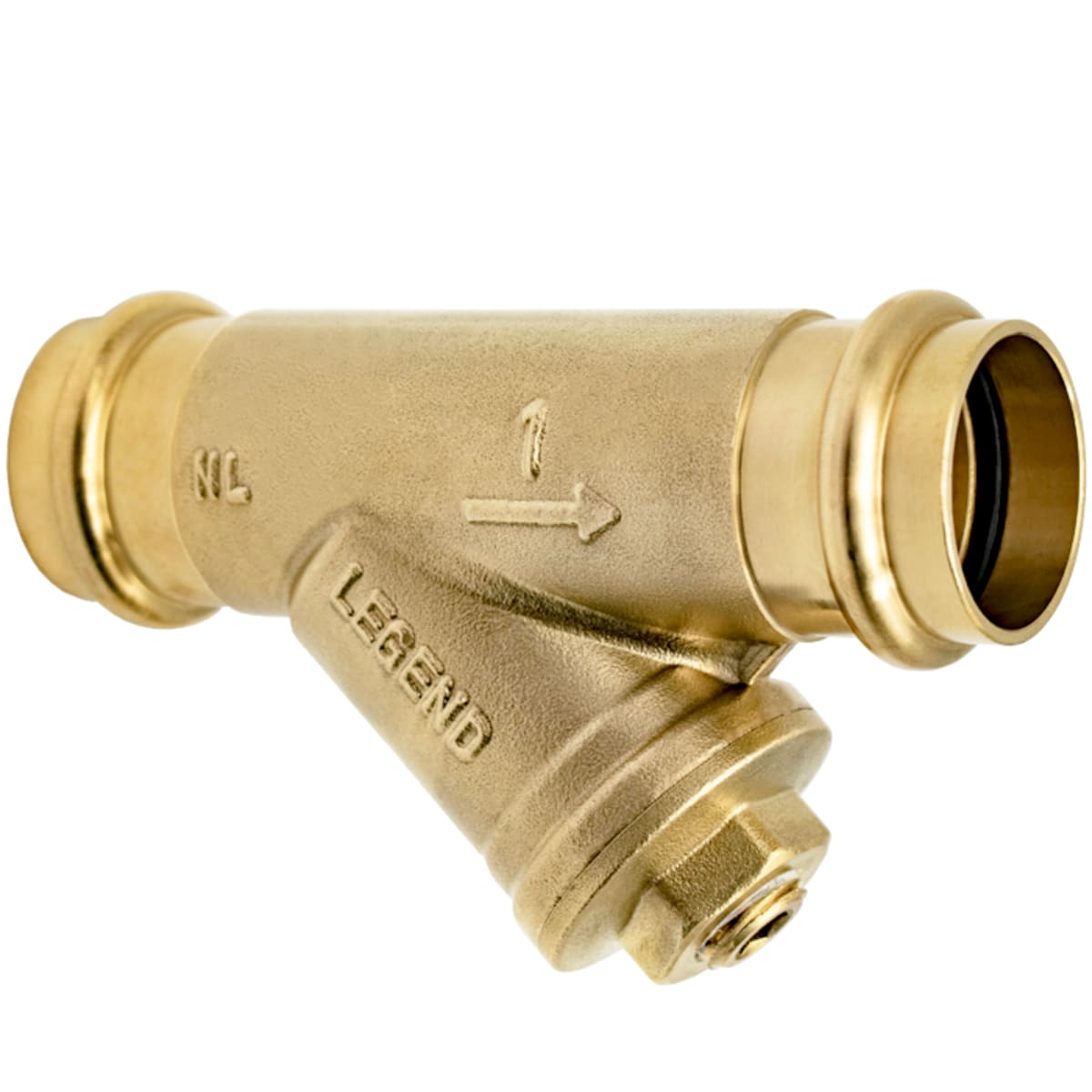

Legend Valve 105-703PNL P-16nl Press Y-Strainer 1/2 inches

Product Description

The LEGEND VALVE 105-703PNL P-16nl Press Y-Strainer is a 1/2" strainer designed to protect downstream components by trapping debris under pressure. It features press-type end connections that eliminate the need for soldering. Designed for installation onto ASTM B88 types K, L and M hard-drawn copper tubing.

• Press-type end connections eliminate soldering needs.
• Designed for installation onto ASTM B88 types K, L and M.
• Protects downstream components by trapping debris.

Product Highlights

This Y-strainer is ideal for use with ASTM B88 types K, L, and M hard-drawn copper tubing, offering protection for downstream components.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 105-703PNL

Technical Specifications

• Body Material: Brass
• Connection Type: Press
• Domestic/Import: Import
• Nominal Size: 1/2 in
• Overall Length: 3.50 in
• Series: P-16NL
• Manufacturer: LEGEND VALVE
• Size: 1/2"
• Configuration: Press x Press
• Item Name: LEAD-FREE BRASS PRESS-CONNECT Y-STRAINER
• Type: Y-Strainer
• Screen Size: 20 Mesh
• Pressure Rating: 200 PSI up to 250° F
• Screen Material: 304 SS 20-Mesh Screen
• Material Standard: Body: Lead-free forged brass, Screen: Stainless Steel, Cap, and Plug: Lead-free forged brass
• Material Specification: Body, Cap, and Plug: UNS Alloy C46500, Screen/Strainer: AISI 304
• Industry Standards: ANSI/ASME B16.51
• Temperature Rating: 250° F
• Mesh: 20
