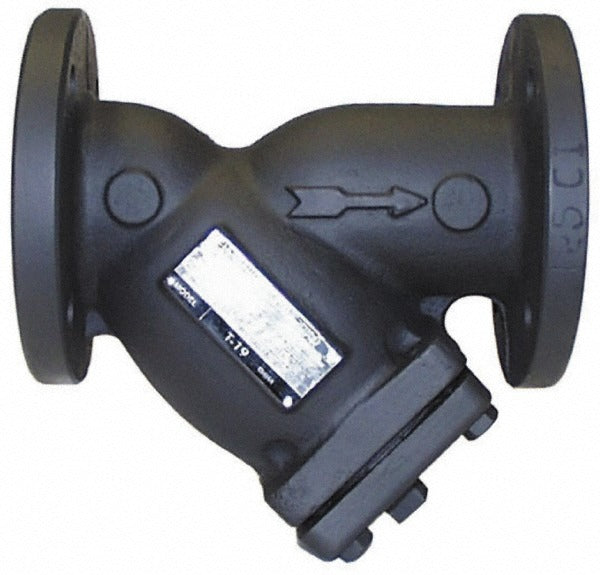

Legend Valve 105-614 Cast Iron Y-strainer 4 Inch Flanged

Product Description

The LEGEND VALVE 105-614 is a 4-inch cast iron Y-strainer designed to remove debris and particulate from piping systems before fluid reaches downstream equipment. It features flanged end connections and carries a 200 psi WOG (Water, Oil, Gas) rating along with a 150 psi WSP (Working Steam Pressure) rating. The Y-strainer body is manufactured to ANSI/ASME B16.1 Class 125 standards, making it a code-compliant choice for commercial and industrial piping applications. Licensed plumbers and pipefitters install this type of strainer to protect valves, meters, pumps, and other sensitive components from fouling.

This strainer is suited for 4-inch flanged piping systems in commercial HVAC, industrial process, and plumbing applications where fluid filtration ahead of control valves or mechanical equipment is required. The flanged end connection simplifies installation and removal in systems that require periodic strainer basket cleaning or maintenance. It is appropriate for water, oil, and gas service within its rated pressure limits.

Key Features

• 200 psi WOG pressure rating for water, oil, and gas service
• 150 psi WSP working steam pressure rating
• Cast iron body construction for durability in commercial piping systems
• Flanged end connections conforming to ANSI/ASME B16.1 Class 125
• 4-inch pipe size accommodates high-flow commercial and industrial lines
• Y-pattern design allows inline straining with minimal pressure drop

Compatibility

Designed as an OEM-style replacement or new-installation Y-strainer for 4-inch flanged piping systems conforming to ANSI/ASME B16.1 Class 125 flange standards.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes and ASME standards. Isolate and depressurize the piping system fully before installation or basket service. Orient the Y-strainer so the screen leg points downward or horizontally to allow sediment collection and drainage during cleanout. Do not exceed the rated WOG or WSP pressure limits for the service application.
