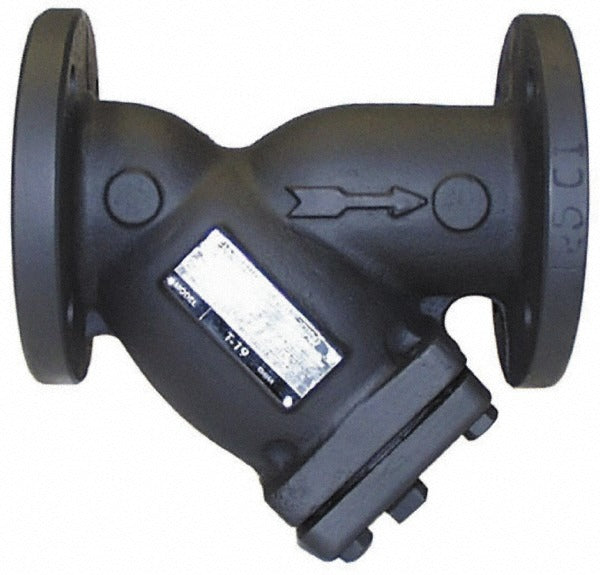

Legend Valve 105-613 Cast Iron Y-strainer 3 Inch Flanged

Product Description

The LEGEND VALVE 105-613 is a cast iron Y-strainer designed for 3-inch flanged piping systems. Y-strainers protect downstream equipment by capturing debris, scale, and particulate from liquid flow lines before it reaches pumps, valves, meters, and other inline components. This strainer carries a 200 psi WOG (water, oil, gas) pressure rating and a 150 psi WSP (working steam pressure) rating, making it appropriate for a wide range of commercial and industrial fluid handling systems. Licensed plumbers and pipefitters are the primary installers. The flanged end connection conforms to ANSI/ASME B16.1 Class 125 standards, ensuring dimensional compatibility with standard flanged piping assemblies.

The 105-613 is suited for commercial and light industrial piping installations where a 3-inch flanged Y-strainer is required on water, oil, or gas service lines. Typical applications include boiler feed lines, chilled water systems, hot water heating systems, and process piping where inline filtration is necessary to protect control valves, heat exchangers, and other sensitive equipment. The cast iron body is a common material selection for these service conditions.

Key Features

• 200 psi WOG pressure rating for water, oil, and gas service
• 150 psi WSP working steam pressure rating
• Cast iron body construction for durability in commercial piping systems
• Flanged end connections per ANSI/ASME B16.1 Class 125 standard
• 3-inch pipe size for medium to large flow applications
• Y-strainer configuration allows for easy inline strainer basket removal and cleaning

Compatibility

Designed as an OEM-style flanged Y-strainer for 3-inch piping systems conforming to ANSI/ASME B16.1 Class 125 flanged connection standards.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and the International Plumbing Code (IPC). Shut off and depressurize the system completely before removing or installing the strainer. The Y-strainer blow-off leg should be oriented downward or as specified by system design to allow proper drainage and cleaning access. Verify flange bolt torque and gasket selection are appropriate for the service pressure and fluid type.
