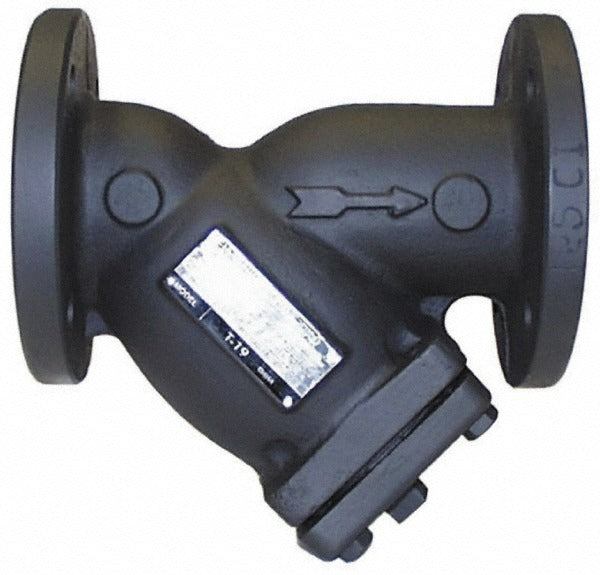

Legend Valve 105-611 Cast Iron Y-strainer 2 in Flanged

Product Description

The LEGEND VALVE 105-611 is a cast iron Y-strainer designed for 2-inch flanged piping systems in commercial and industrial plumbing and mechanical applications. It filters debris and particulates from fluid lines to protect downstream equipment such as pumps, valves, and meters. Rated at 200 psi WOG (water, oil, gas) and 150 psi WSP (working steam pressure), this strainer is built for demanding service conditions. The flanged end connection conforms to ANSI/ASME B16.1 Class 125 standards, making it a code-compliant choice for a wide range of hydronic and process piping installations. Licensed plumbers and pipefitters are the typical installers for this type of fitting.

This Y-strainer is suited for 2-inch flanged piping systems in commercial mechanical rooms, industrial process lines, and hydronic heating and cooling systems. It is used wherever inline straining is required to protect equipment from scale, rust, and debris carried in the fluid stream. The ANSI Class 125 flanged configuration allows it to mate with standard cast iron and ductile iron flanged components throughout the system.

Key Features

• Cast iron body construction rated for durable service in commercial and industrial environments
• 200 psi WOG pressure rating for water, oil, and gas service
• 150 psi WSP working steam pressure rating
• Flanged end connections per ANSI/ASME B16.1 Class 125 standard
• Y-strainer configuration allows accessible blowdown and screen cleaning without removing the body from the line
• Sized for 2-inch pipe for straightforward integration into standard flanged piping runs

Compatibility

Designed for use with 2-inch ANSI/ASME B16.1 Class 125 flanged piping systems. Compatible with standard cast iron and ductile iron flanged connections in commercial and industrial plumbing and mechanical piping applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes and ASME standards. Shut off and depressurize the system completely before installing or servicing the strainer. Orient the strainer body so the Y-leg (blowdown port) is accessible for periodic screen removal and cleaning. Use appropriate flange gaskets rated for the service fluid and pressure to ensure a leak-free connection.
