Legend Valve 105-530 3 inches T-17 D.I. Y-Strainer

Product Description

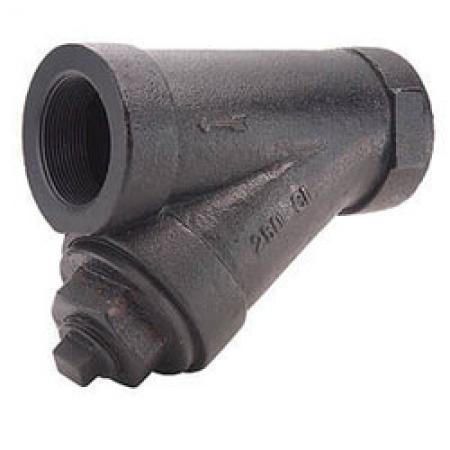

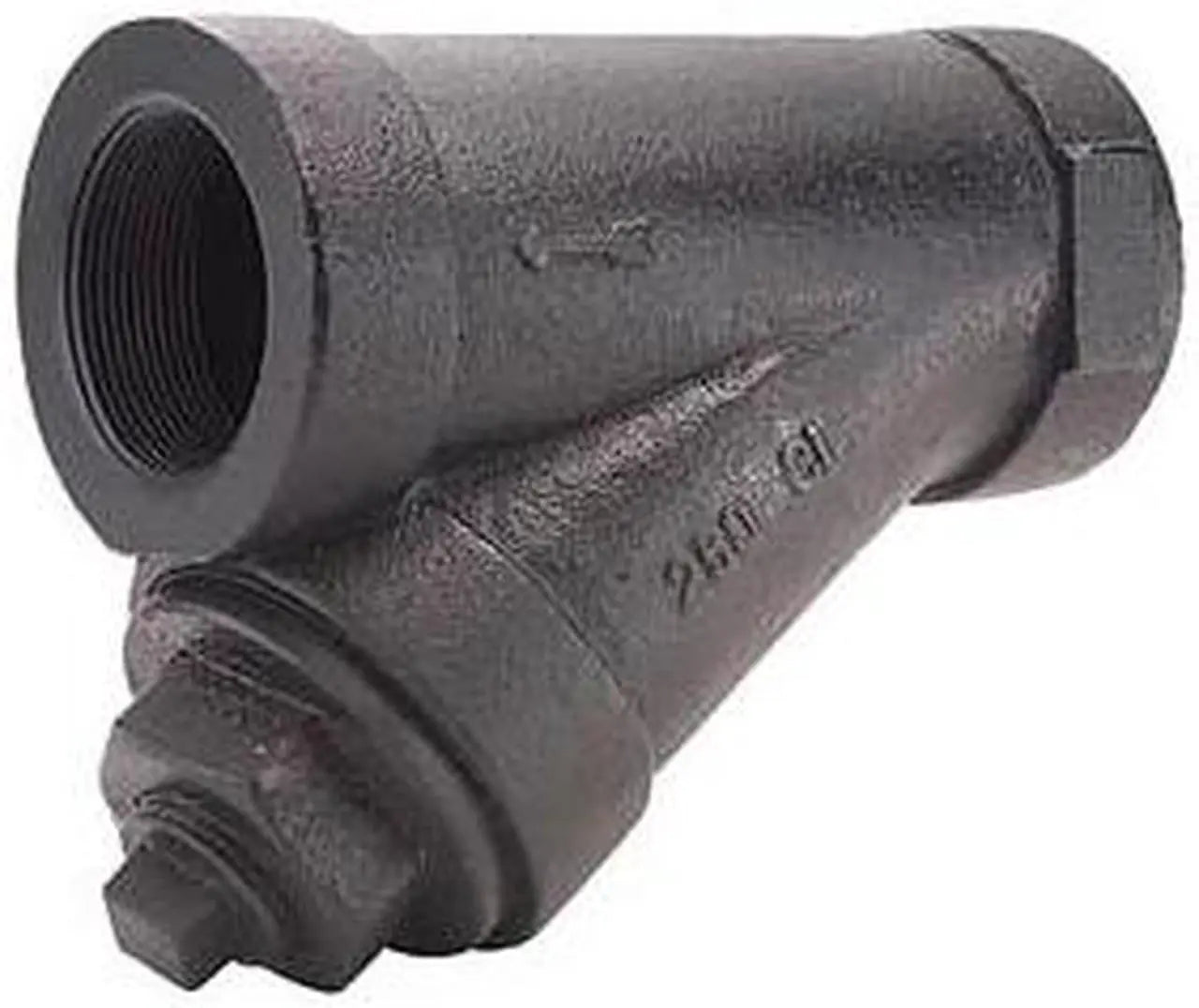

The Legend Valve 105-530 Y-Strainer, part of the T-17 series, is designed to protect downstream components by trapping debris under pressure. Constructed from high-strength cast iron, it resists distortion from pipeline stresses and features uni-directional flow. The gasketed strainer cap is removable for easy screen servicing. Can be installed horizontally or vertically.

• High-strength cast iron construction resists distortion from pipeline stresses
• Designed to protect downstream components, by trapping and holding debris under pressure
• Uni-directional flow

Product Highlights

Cast iron Y-Strainer with FNPT connection, designed for easy servicing and installation in various orientations.

Product Information

Standard Information

• Brand: Legend Valve
• Manufacturer Part Number: 105-530
• Country of Origin: China

Technical Specifications

• Blow-Off Size: 1 in NPT
• Body Material: Cast Iron
• Connection Type: FNPT
• Nominal Size: 3 in
• Overall Height: 7-1/2 in
• Overall Length: 8 in
• Series: T-17
• Manufacturer: LEGEND VALVE
• Standards [Specifications]: 250 WSP, 500 CWP
• Connection Type [Specifications]: FNPT x FNPT
• Brand: LEGEND VALVE
