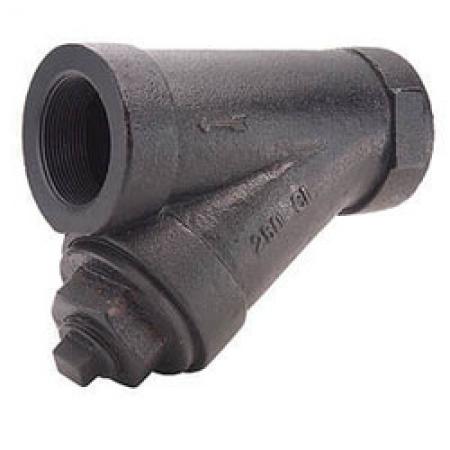

Legend Valve 105-529 2-1/2 T-17 20-M Y-St

Product Description

The Legend Valve 105-529 2-1/2 T-17 20-M Y-ST is designed to protect downstream components by trapping debris under pressure. Constructed from high-strength cast iron, it resists distortion from pipeline stresses. It features a gasketed strainer cap that is removable for easy servicing. Suitable for horizontal or vertical installation.

• High-strength cast iron construction resists distortion from pipeline stresses
• Designed to protect downstream components by trapping and holding debris under pressure
• Gasketed strainer cap is removable for easy servicing of the screen or strainer

Product Highlights

Protects downstream components, easy to service, and durable cast iron construction.

Product Information

Standard Information

• Brand: Legend Valve
• Manufacturer Part Number: 105-529
• Country of Origin: China

Technical Specifications

• Blow-Off Size: 1 in NPT
• Body Material: Cast Iron
• Connection Type: FNPT
• Domestic/Import: Import
• Nominal Size: 2-1/2 in
• Overall Height: 6.13 in
• Overall Length: 8 in
• Series: T-17
• Manufacturer: LEGEND VALVE
• Standards [Specifications]: 250 WSP, 500 CWP
• Connection Type [Specifications]: FNPT x FNPT
• Size: 2-1/2"
• ItemPackageQuantity: 1
• Features: 2-1/2" T-17Cast Iron Y-Strainer
• Additional Information: Stainless Steel Screen
• Housing Material: Cast Iron
• Perforation Size: 1/16 in
• Pressure Rating: 250 to 500 psi
• Temperature Rating: 310 deg F
• Pipe Size: 2-1/2
• End Connection: FNPT
• Screen Material: Stainless Steel
• Mesh Size: 20
• Country of Origin: China
