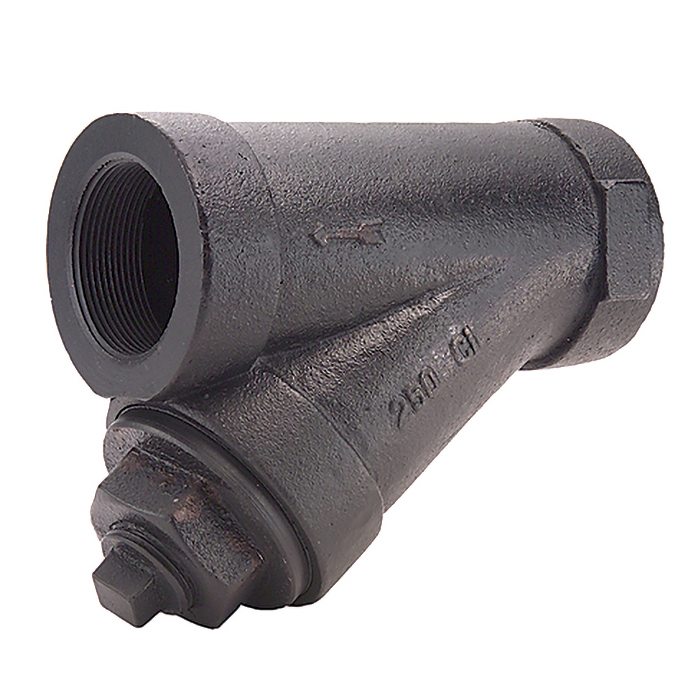

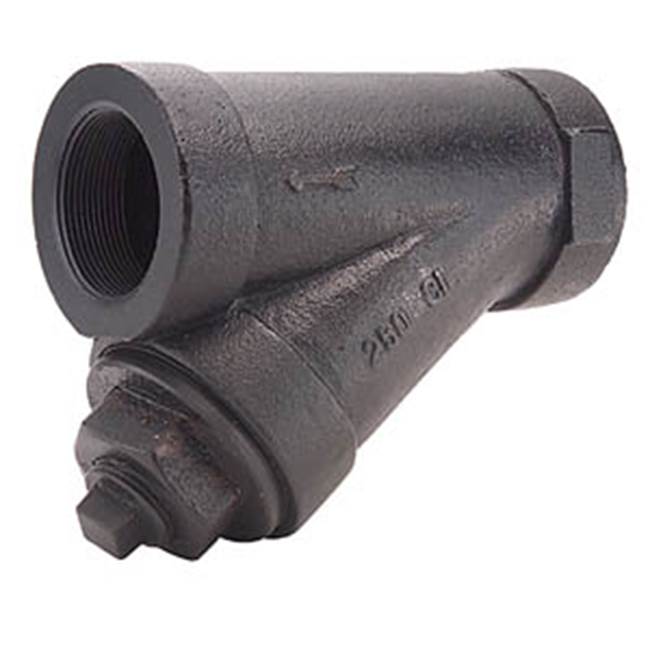

Legend Valve 105-527 1-1/2 inches T-17 D.I. Y-Strainer

Product Description

The LEGEND VALVE 105-527 is a 1-1/2" T-17 D.I. Y-Strainer with FNPT connection. Constructed from high-strength cast iron, this Y-strainer resists distortion and protects downstream components by trapping debris under pressure. It can be installed horizontally or vertically and features a removable, gasketed strainer cap for easy servicing. The strainer includes a .304 stainless steel 20-mesh screen.

• High-strength cast iron construction resists distortion from pipeline stresses
• Designed to protect downstream components, by trapping and holding debris under pressure
• Uni-directional flow

Product Highlights

Cast iron Y-strainer with FNPT connections. Protects downstream components from debris. Can be installed horizontally or vertically.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 105-527

Technical Specifications

• Blow-Off Size: 3/4 in NPT
• Body Material: Cast Iron
• Connection Type: FNPT
• Nominal Size: 1-1/2 in
• Overall Height: 3.81 in
• Overall Length: 5-3/4 in
• Overall Width: 5-3/4 in
• Series: T-17
• Product Type: Wye Fitting
• SIZE: 1-1/2"
• CONFIGURATION: FNPT x FNPT; Includes 20-Mesh Stainless Steel Screen
• Part #: 105-527
