Legend Valve 105-525 Cast Iron Y-strainer 1 Inch Fnpt

Product Description

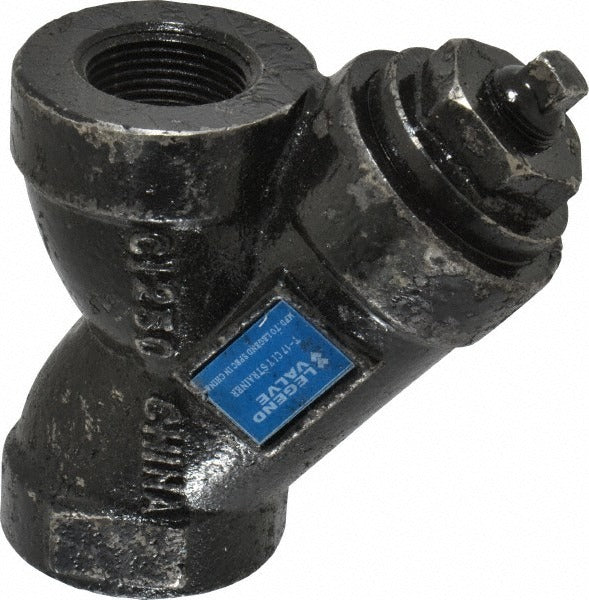

The LEGEND VALVE 105-525 is a cast iron Y-strainer designed for in-line filtration of liquids in commercial and industrial piping systems. It accepts 1-inch female NPT connections on both ends and carries a 500 psi WOG (Water, Oil, Gas) pressure rating along with a 250 psi WSP (Working Steam Pressure) rating. The strainer body uses a 20-mesh screen to capture particulate and debris, protecting downstream valves, meters, and equipment from sediment damage. Plumbers and pipefitters install this type of strainer during new construction and retrofit work wherever line protection is required.

This Y-strainer is suited for residential and light commercial plumbing, hydronic heating, and industrial piping where 1-inch threaded connections are standard. The FNPT end connections allow direct installation into threaded pipe runs without adapters. Typical installation points include upstream of control valves, pumps, and flow meters. The Y-pattern body allows for in-line blowdown or screen removal without cutting the pipe, keeping maintenance straightforward in tight mechanical spaces.

Key Features

• 500 psi WOG pressure rating for broad system compatibility
• 250 psi WSP rating supports steam service applications
• Cast iron body provides durability in demanding piping environments
• 20-mesh stainless screen captures particulate to protect downstream components
• FNPT end connections on both ends for direct threaded installation
• Meets ANSI and ASME B1.20.1 thread standards for dimensional consistency

Compatibility

Designed as an OEM-style replacement or new-installation Y-strainer for 1-inch threaded piping systems in plumbing, hydronic, and light industrial applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes and ASME standards. Shut off system pressure and drain the line before installing or servicing the strainer. The Y-body orientation should be positioned so the strainer leg points downward or horizontally to allow for proper sediment collection and easy blowdown access. Use thread sealant or PTFE tape on all FNPT connections per standard trade practice.
