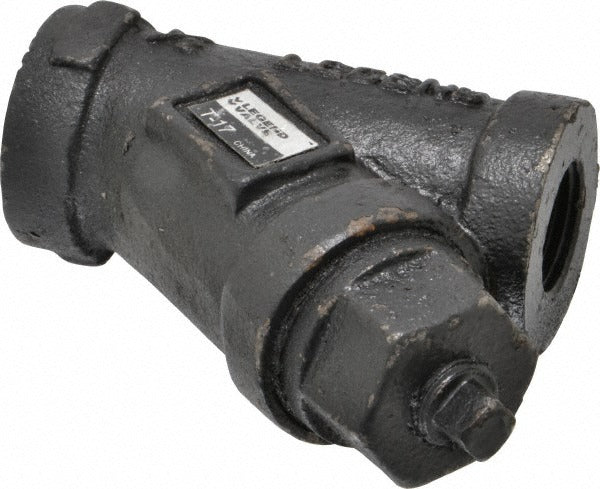

Legend Valve 105-523 Cast Iron Y-strainer 1/2 Inch Fnpt

Product Description

The LEGEND VALVE 105-523 is a cast iron Y-strainer designed to remove debris and particulate from piping systems before it reaches downstream equipment such as valves, meters, pumps, and traps. The body is rated at 500 psi WOG (water, oil, gas) and 250 psi WSP (working steam pressure), making it suitable for a wide range of fluid handling applications. Connections are female NPT (FNPT) on both ends, conforming to ANSI/ASME B1.20.1 thread standards. The 20-mesh screen filters out coarse debris without creating significant flow restriction. Licensed plumbers and pipefitters are the primary installers of this fitting class.

The 105-523 is intended for 1/2 inch pipe installations in residential and light commercial plumbing, hydronic heating, steam distribution, compressed air, and general industrial fluid systems. Its Y-body configuration allows the strainer screen to be removed and cleaned without cutting the line, reducing maintenance downtime. The FNPT end connections make it compatible with standard threaded pipe assemblies in any system where inline straining is required upstream of sensitive components.

Key Features

• 500 psi WOG pressure rating for use across water, oil, and gas service
• 250 psi WSP rating supports steam system applications
• 20-mesh stainless screen captures coarse debris and pipe scale
• Cast iron body provides durability in industrial and hydronic piping environments
• FNPT ends conform to ANSI/ASME B1.20.1 for reliable thread engagement
• Y-pattern design allows in-line screen access without line removal

Compatibility

Designed as an OEM-style threaded inline strainer for 1/2 inch FNPT pipe systems in plumbing, hydronic, steam, and general industrial fluid applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes and ASME standards. Depressurize and drain the line completely before installing or servicing this strainer. Apply appropriate thread sealant or PTFE tape to the male threads being engaged, following IPC guidelines. Orient the Y-body so the strainer screen leg points downward or horizontally to allow sediment collection and ease of blowdown cleaning.
