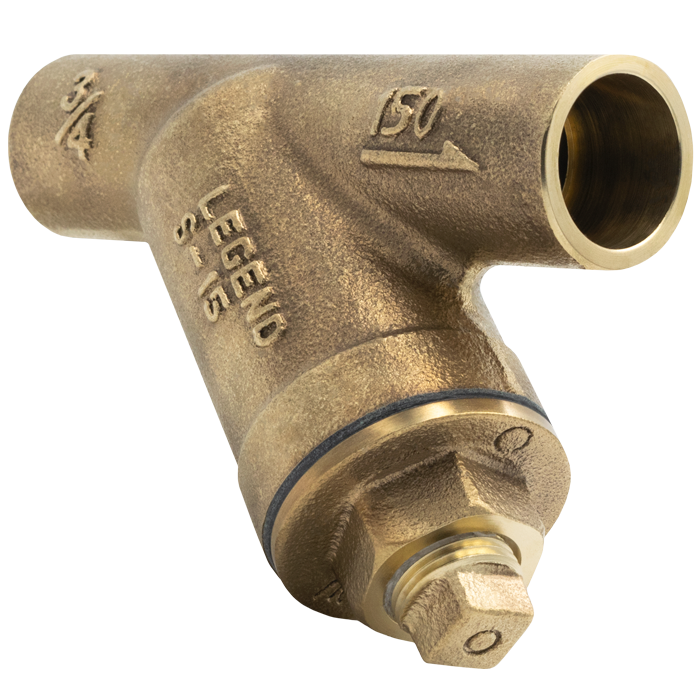

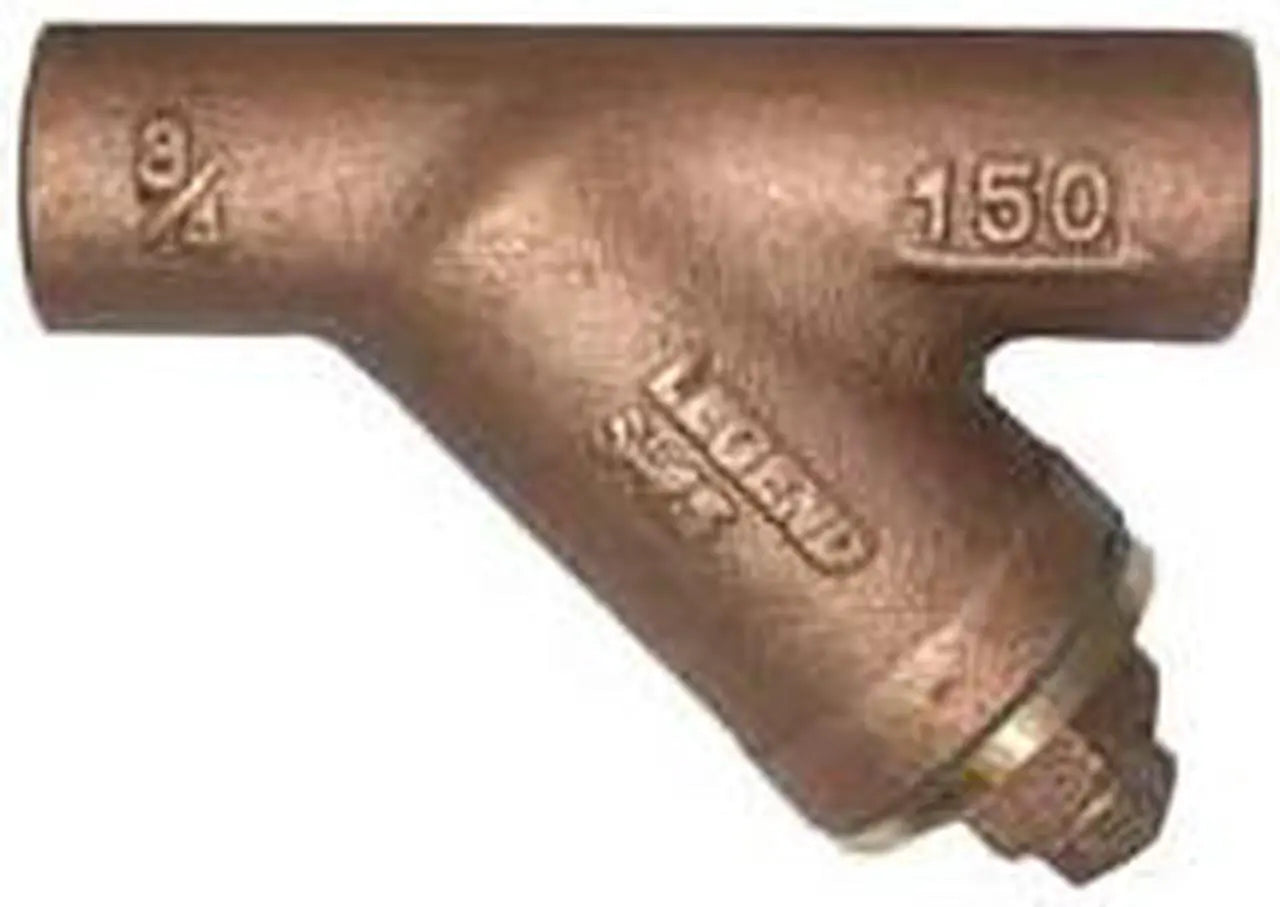

Legend Valve 105-519 2-1/2 150 c x c y-strainer

Product Description

The LEGEND VALVE 105-519 is a 2-1/2" Y-Strainer with a Model T/S-15 series. It features a bronze body and a 304 stainless steel screen. The Y-Strainer is designed to protect downstream components by trapping and holding debris. It has a compression (solder) connection type and a 1/16 IN perforated screen size.

• Nominal Size: 2-1/2 IN
• Connection Type: Compression (Solder)
• Pressure Rating: 300 PSI (WOG), 150 PSI (WSP)

Product Highlights

This Y-Strainer is ideal for protecting downstream components by trapping and holding debris. It features a full-pattern, heavy-duty body with a .304 SS mesh screen.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 105-519
• Country of Origin: Indonesia

Technical Specifications

• Series/Model: Model T/S-15
• Nominal Size: 2-1/2 IN
• Connection Type: Compression (Solder)
• Screen Size: 1/16 IN Perforated
• Pressure Rating: 300 PSI (WOG), 150 PSI (WSP)
• Body Material: Bronze
• Screen Material: 304 Stainless Steel
• Body Material Standard: ASTM B584
• Screen Material Standard: ASTM A240
• Body Material Specification: UNS C84400
• Screen Material Specification: UNS S30400
• Industry Standards: ANSI/ASME B16.18
• Width: 9.06 IN
• Additional Specifications: Plug: 1/2 IN NPT
• Configuration: Sweat x Sweat; Includes 304 Stainless Steel 1/16" Perforated Strainer
• Brand: LEGEND VALVE
