Legend Valve 105-518 2 150 C X C Y-Strainer

Product Description

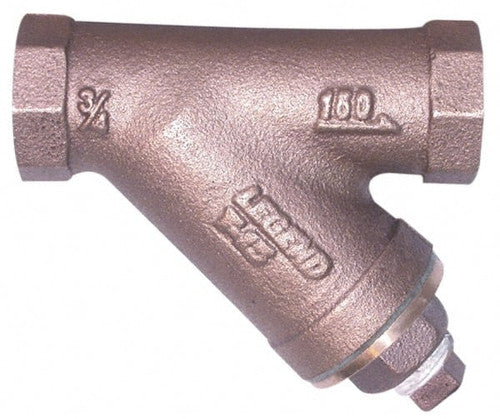

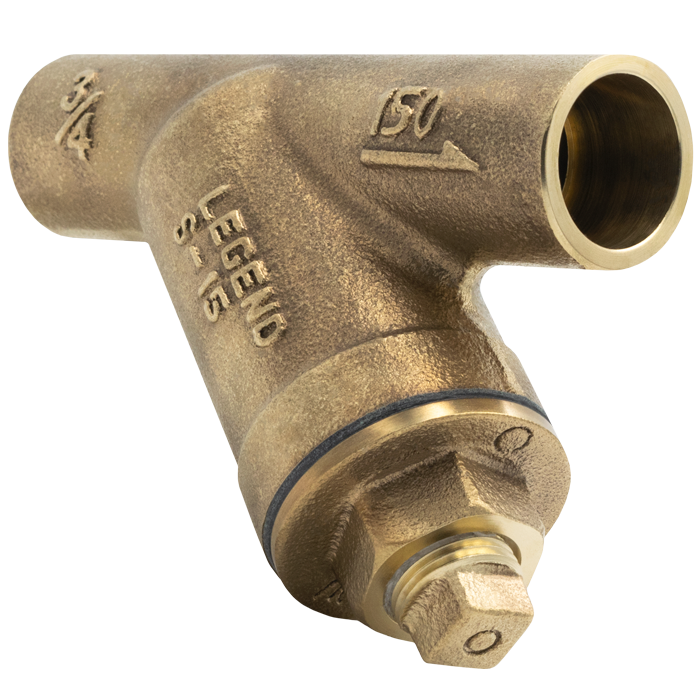

The LEGEND VALVE 105-518 Y-Strainer, Model T/S-15, features a 2 IN nominal size and compression (solder) connection. The screen size is 20 mesh and has a pressure rating of 300 PSI (WOG) and 150 PSI (WSP). The body is constructed of bronze and the screen is 304 stainless steel.

• Y-Strainer
• Compression (Solder) Connection
• Ideal for protecting downstream components, by trapping and holding debris

Product Highlights

This bronze Y-Strainer is designed with a sweat x sweat connection and includes a 20-mesh stainless steel screen for efficient filtration.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 105-518

Technical Specifications

• Series/Model: Model T/S-15
• Nominal Size: 2 IN
• Connection Type: Compression (Solder)
• Screen Size: 20 Mesh
• Pressure Rating: 300 PSI (WOG), 150 PSI (WSP)
• Body Material: Bronze
• Screen Material: 304 Stainless Steel
• Body Material Standard: ASTM B584
• Screen Material Standard: ASTM A240
• Body Material Specification: UNS C84400
• Screen Material Specification: UNS S30400
• Industry Standards: ANSI/ASME B16.18
• Width: 7-1/2 IN
• Additional Specifications: Plug: 1/2 IN NPT
• Dimensions: 8.62 in L
