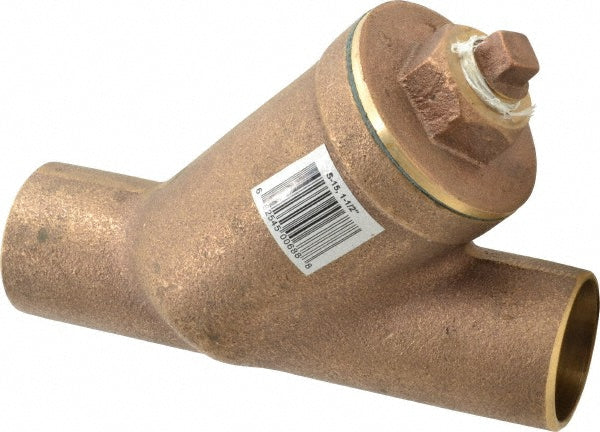

Legend Valve 105-517 S-15 Y-Strainer 1-1/2 in

Product Description

The LEGEND VALVE 105-517 S-15 is a bronze Y-strainer with a 1-1/2 inch nominal size and sweat x sweat configuration. It is designed to protect downstream components by trapping debris with its 304 stainless steel 20 mesh screen. The strainer features a full-pattern, heavy-duty body and a square head closure plug for draining sediment.

• Features a bronze body and a 304 stainless steel screen.
• Equipped with a 20 mesh screen for effective filtration.
• Ideal for trapping and holding debris to protect downstream components.

Product Highlights

This bronze Y-strainer is designed to remove debris from fluid systems, ensuring optimal performance and longevity of downstream components.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 105-517
• Country of Origin: Indonesia

Technical Specifications

• Series/Model: S-15
• Nominal Size: 1-1/2 in
• Connection Type: Sweat x Sweat
• Screen Size: 20 Mesh
• Pressure Rating: 150 to 300 psi
• Body Material: Bronze
• Screen Material: 304 Stainless Steel
• Body Material Standard: ASTM B584
• Screen Material Standard: ASTM A240
• Body Material Specification: UNS C84400
• Screen Material Specification: UNS S30400
• Industry Standards: ANSI/ASME B16.18
• Additional Specifications: Plug: 1/2 IN NPT
• Standards: 150 WSP, 300 CWP
• Country of Origin: Indonesia
• Configuration: Includes 20-Mesh Stainless Steel Screen
• Blow-Off Size: 1/2 in NPT
• Overall Length: 6.89 in
• End Connection: Solder
• UNSPSC Code: 40142505
• Domestic/Import: Import
