Legend Valve 105-515 S-15 Y-Strainer 1 in (Compression C x C)

Product Description

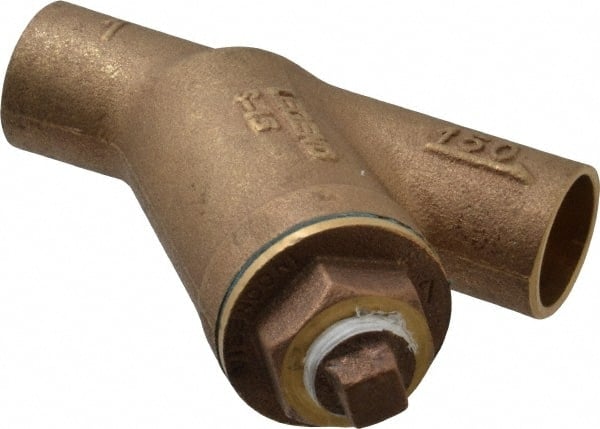

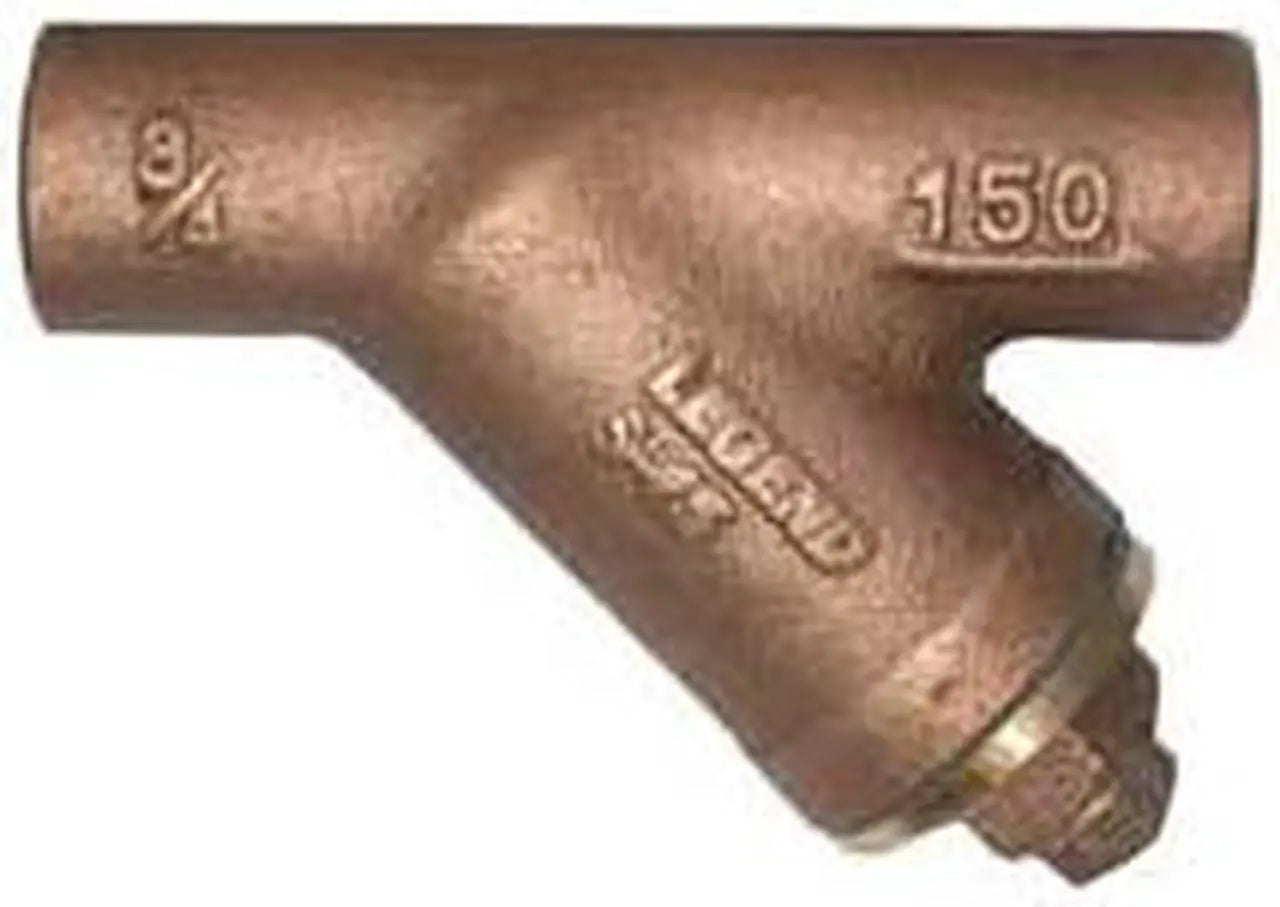

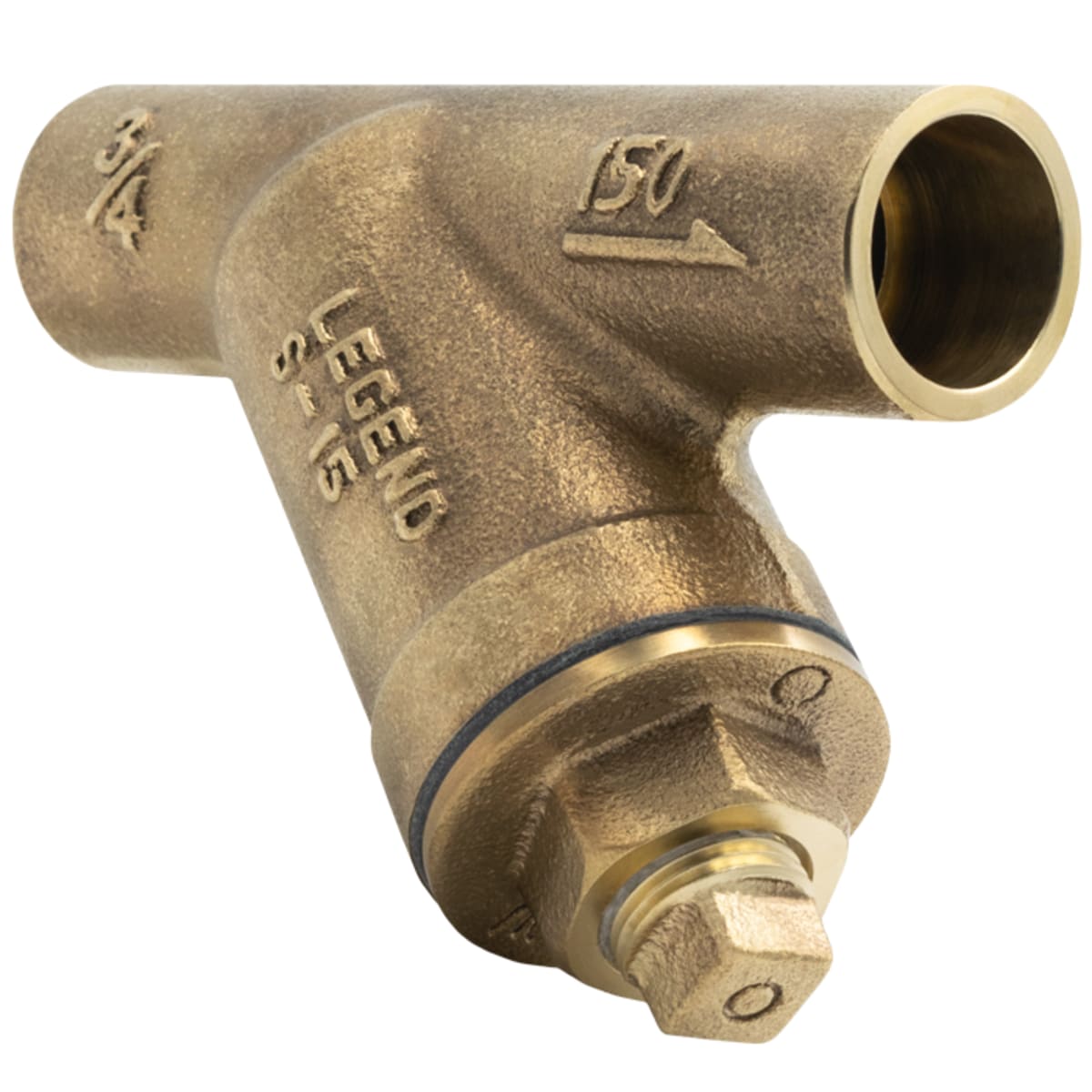

Legend Valve 105-515 is a 1 in Y-strainer (Model T/S-15) for inline particulate filtration in piping systems. It has a bronze body (UNS C84400) with a 20 mesh 304 stainless steel (UNS S30400) screen, compression (solder) C x C connections, and a 1/2 in NPT blow-off plug. Rated 300 PSI (WOG) and 150 PSI (WSP), it meets ASTM and ANSI/ASME B16.18 material standards and is used to protect downstream valves, meters, and control devices by trapping debris.

• Bronze body construction (UNS C84400) with material standard ASTM B584
• 20 mesh 304 stainless steel screen (UNS S30400) for particulate filtration
• Rated 300 PSI (WOG) and 150 PSI (WSP); compression (solder) C x C connections and 1/2 in NPT blow-off plug

Product Highlights

1 in S-15 bronze Y-strainer with 20 mesh 304 stainless screen, compression C x C connections, 1/2 in NPT blow-off, rated 300 PSI (WOG) / 150 PSI (WSP), ANSI/ASME B16.18 compliant.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 105-515
• Country of Origin: Import

Technical Specifications

• Brand: LEGEND VALVE
• MPN: 105-515
• Model / Series: Model T/S-15
• Type: Y-Strainer
• Nominal Size: 1 in
• Connection Type: Compression (solder) C x C
• Screen Size: 20 Mesh
• Screen Material: 304 stainless steel (UNS S30400)
• Body Material: Bronze (UNS C84400)
• Material Standard: Body: ASTM B584; Screen: ASTM A240
• Pressure Rating: 300 PSI (WOG); 150 PSI (WSP)
• Blow-Off / Plug Size: 1/2 in NPT
• Industry Standards: ANSI/ASME B16.18
