Legend Valve 105-514 3/4 150 C X C Y-Strainer

Product Description

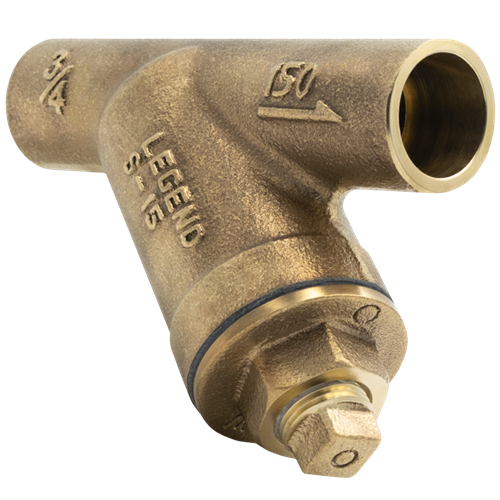

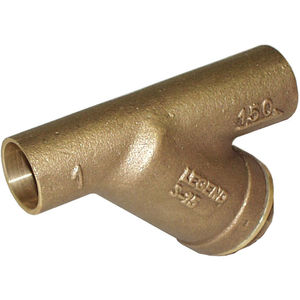

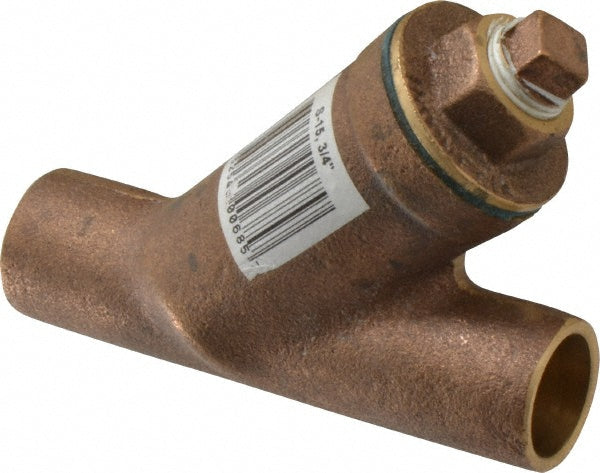

The LEGEND VALVE 105-514 is a 3/4 IN Y-Strainer with a compression (solder) connection type. It features a bronze body and a 1/16 IN perforated 304 stainless steel screen. This strainer is suitable for applications requiring the removal of particulate matter from fluids, protecting downstream components.

• Y-Strainer with Compression (Solder) connection
• Features a 1/16 IN Perforated screen
• Constructed with a bronze body and 304 Stainless Steel screen

Product Highlights

This Y-Strainer is ideal for industrial, commercial, and residential applications. It effectively removes debris from fluids, ensuring system protection.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 105-514
• Country of Origin: Indonesia

Technical Specifications

• Nominal Size: 3/4 IN
• Connection Type: Compression (Solder)
• Screen Size: 1/16 IN Perforated
• Pressure Rating: 300 PSI (WOG), 150 PSI (WSP)
• Body Material: Bronze
• Screen Material: 304 Stainless Steel
• Body Material Standard: ASTM B584
• Screen Material Standard: ASTM A240
• Body Material Specification: UNS C84400
• Screen Material Specification: UNS S30400
• Industry Standards: ANSI/ASME B16.18
• Additional Specifications: Plug: 3/8 IN NPT
• MPN: 105-514
• Mesh Size: 20
• End Connection: Solder
• UNSPSC Code: 40142505
• Working Pressure: WSP - 150 psi, WOG - 300 psi
• Plug Size: 3/8"
• Material: Bronze
• Type: Strainer
