Legend Valve 105-510NL 3 T-15 No Lead Bze Y-Strainer

Product Description

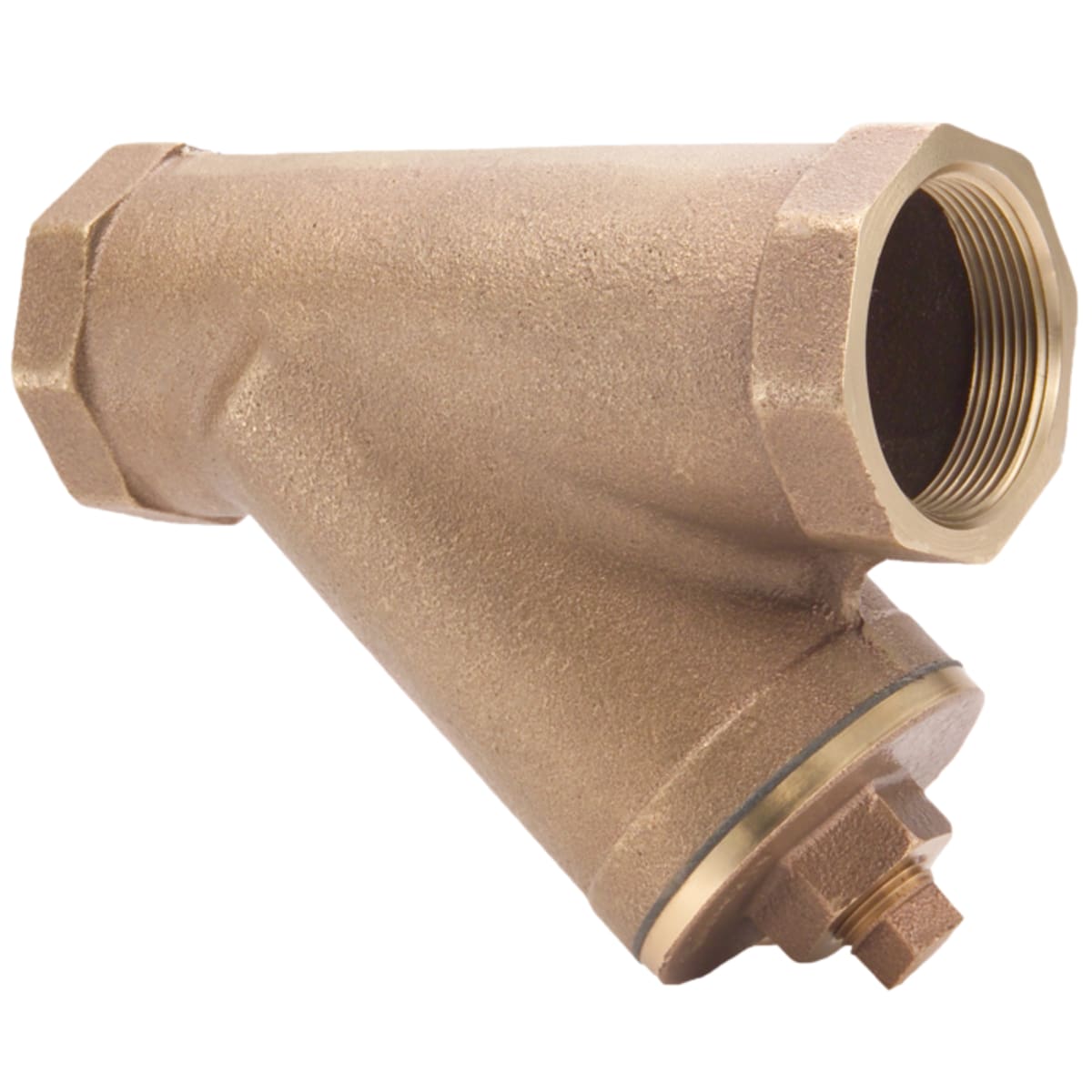

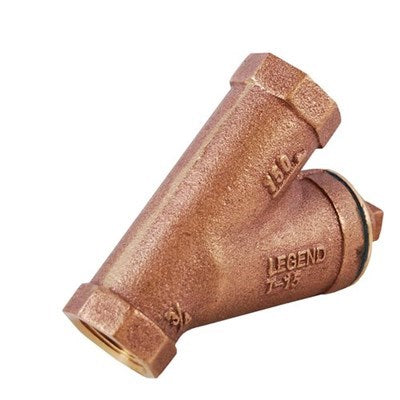

The LEGEND VALVE 105-510NL is a lead free wye strainer with a 3 in nominal size. The heavy-duty, full-pattern bronze construction resists pipeline stresses and distortion. It is equipped with a 304 stainless steel 20 mesh screen or 1/16 in hole diameter perforated strainer. Ideal for protecting downstream components by trapping and holding debris.

• Lead free design is suitable for all California and Vermont potable water installations
• Heavy-duty, full-pattern bronze construction resists pipeline stresses and distortion
• Standardly equipped with a 304 stainless steel 20 mesh screen or 1/16 in hole diameter perforated strainer

Product Highlights

This lead free wye strainer has a cast bronze body and a 1/2 in NPT blow-off size. Self-cleaning can be accomplished by opening the valve or plug connected to the blow-off outlet.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 105-510NL
• Country of Origin: Indonesia

Technical Specifications

• Blow-Off Size: 1/2 in NPT
• Body Material: Cast Bronze
• Connection Type: FNPT
• Domestic/Import: Import
• Grade: Commercial
• Nominal Size: 3 in
• Overall Length: 10.2 in
• Series: T-15NL
• Manufacturer: LEGEND VALVE
• Size: 3"
• Standards: 150 WSP, 300 CWP
• Ratings: 150 WSP 300 CWP
• Configuration: FNPT x FNPT; Includes 304 Stainless Steel 1/16" Perforated Strainer
• End Connection: Female NPT
• Mesh Size: 20
• Lead Free: Yes
• ANSI/ASME Standards: ANSI/ASME B1.20.1, ANSI/ASME B16.18
• Seal Material: NITRILIC BONDED NON-ASBESTOS FIBER
• PRESSURE RATING: 150 PSI CWP, 300 PSI CWP
• END TO END DISTANCE: 10.2 INCH
• PIPE SIZE TO VERTICAL DIMENSION: 6.3 INCH
• MESH/SCREEN MATERIAL: ASTM A240 UNS S30400 304 STAINLESS STEEL
• MODEL: T-15NL
• Pipe Size: 3
• Screen Material: Stainless Steel
• UNSPSC Code: 40142505
