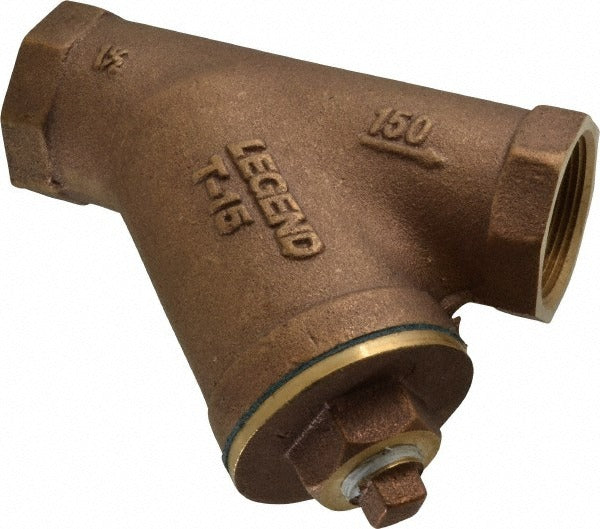

Legend Valve 105-507 Bronze Y-strainer 1.5 Inch Fnpt

Product Description

The LEGEND VALVE 105-507 is a bronze Y-strainer designed to filter debris and particulates from piping systems, protecting downstream equipment such as valves, meters, and pumps. Sized for 1-1/2 inch pipe with female National Pipe Taper (FNPT) end connections, it carries a 300 psi water-oil-gas (WOG) rating and a 150 psi working steam pressure (WSP) rating. The 20-mesh stainless strainer screen captures coarse debris while maintaining adequate flow. Plumbers and pipefitters install this fitting in commercial and residential water, hydronic, and process piping lines where periodic strainer cleaning is part of routine system maintenance.

This Y-strainer is suited for residential and light commercial plumbing systems, hydronic heating and cooling distribution lines, and general-purpose water service piping. The FNPT connections are compatible with standard NPT-threaded fittings and valves, allowing straightforward integration into existing threaded iron or bronze piping assemblies. It is commonly installed upstream of sensitive components to extend their service life by preventing particulate ingestion.

Key Features

• 300 psi WOG pressure rating for broad service application
• 150 psi WSP rating supports steam service installations
• Bronze body construction provides corrosion resistance in water and hydronic service
• 20-mesh screen captures coarse debris without excessive flow restriction
• FNPT end connections conform to ANSI and ASME B1.20.1 threading standards
• Compact Y-body design allows installation in tight piping runs

Compatibility

Designed as an OEM-style replacement or new-installation Y-strainer for 1-1/2 inch NPT-threaded bronze and ferrous piping systems in plumbing, hydronic, and general fluid service applications.

Installation Notes

Installation is performed by licensed plumbers or pipefitters. Shut off and depressurize the piping system fully before installing or servicing this strainer. Apply thread sealant or PTFE tape to all NPT threads in accordance with local plumbing codes and ASME B1.20.1 requirements. Orient the Y-body with the strainer leg angled downward to allow clean-out access and to collect debris away from the flow path.
