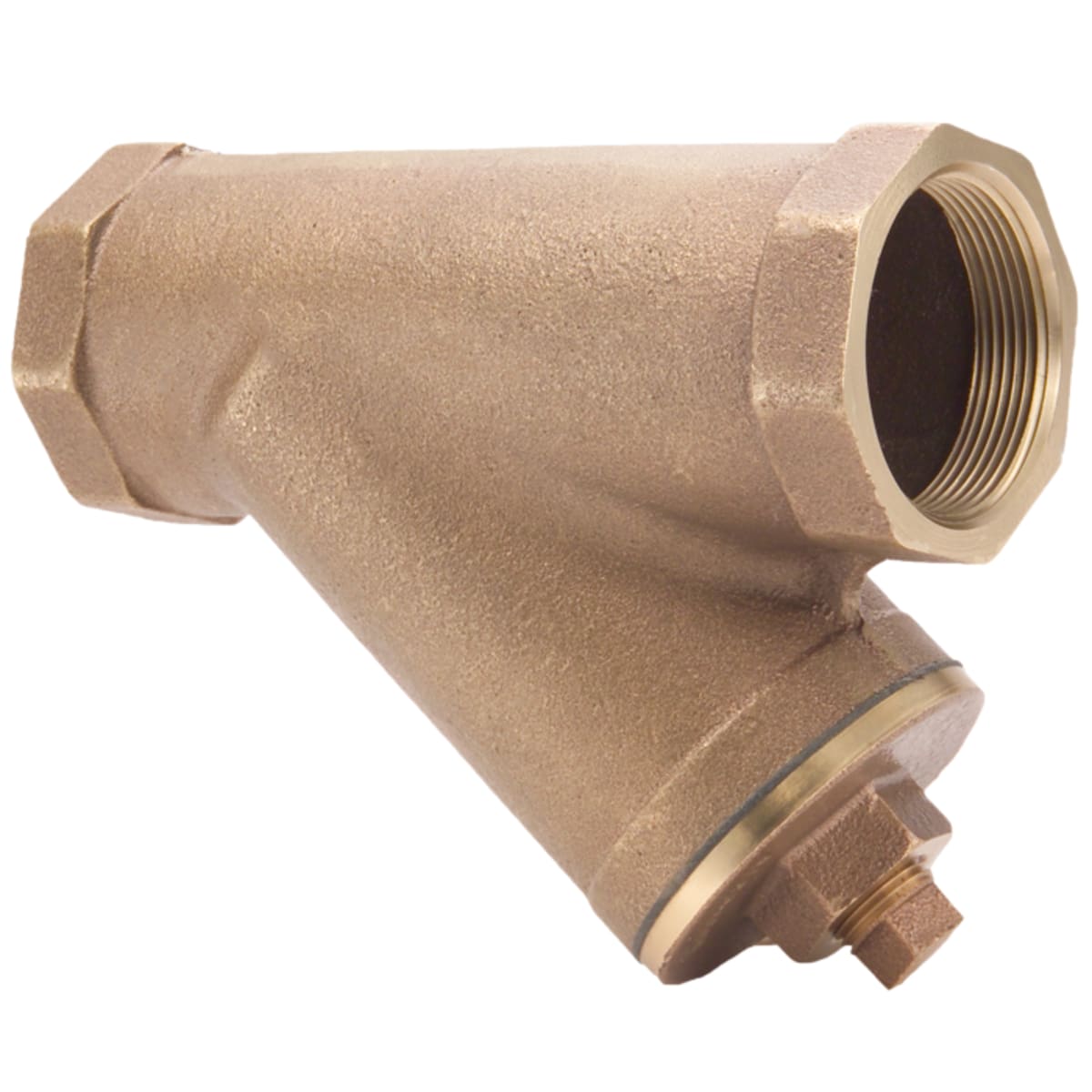

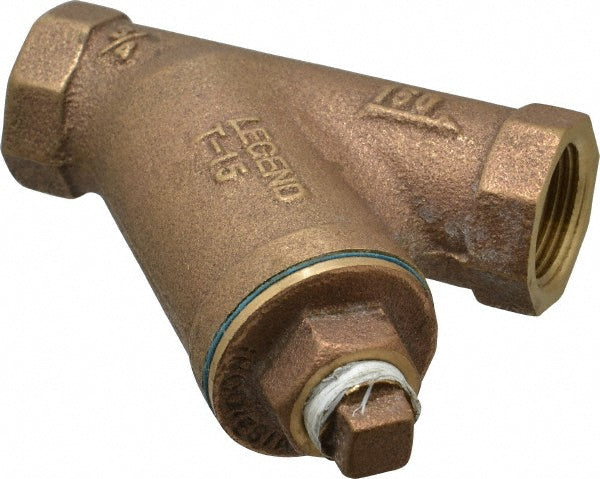

Legend Valve 105-504 3/4 inch T-15 bronze Y-strainer 300 psi CWP 150 psi WSP

Product Description

The LEGEND VALVE 105-504 is a T-15 series 3/4 inch nominal bronze Y-strainer designed for commercial applications. It features a full-pattern heavy-duty bronze body and FNPT connections, ensuring robust performance in plumbing and hydronic systems. This import model is rated for 300 psi CWP and 150 psi WSP, effectively protecting downstream components by trapping debris. Its overall length is 3.96 inches, and it includes a 3/8 inch NPT blow-off.

• Features a full-pattern heavy-duty bronze body for durability
• Rated for 300 psi CWP and 150 psi WSP for various pressure applications
• Includes a 20-mesh stainless steel screen for effective filtration

Product Highlights

Protects downstream components by trapping and holding debris with a 20-mesh stainless steel screen.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 105-504
• Country of Origin: Import

Technical Specifications

• Series: T-15
• Nominal Size: 3/4 in
• Overall Length: 3.96 in
• Connection Type: FNPT
• Blow-Off Size: 3/8 in NPT
• Body Material: Bronze
• Grade: Commercial
• Pressure Rating: 300 psi CWP, 150 psi WSP
• Screen Material: Stainless Steel
• Mesh Size: 20
• Standards: ASTM B584; ANSI; ASME B1.20.1; ASME B16.18
