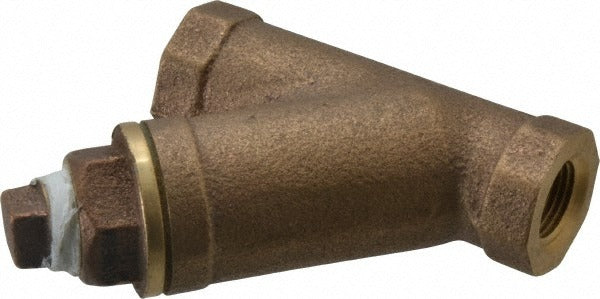

Legend Valve 105-502 Bronze Y-strainer Fnpt 300 Psi

Product Description

The LEGEND VALVE 105-502 is a bronze Y-strainer designed to remove debris and particulate from pipeline flow in plumbing and mechanical systems. Sized for 3/8-inch pipe with female NPT (FNPT) ends on both inlet and outlet, this strainer carries a 300 psi WOG (water, oil, gas) pressure rating and a 150 psi WSP (working steam pressure) rating. The 20-mesh stainless screen captures sediment and scale before it reaches valves, meters, or equipment downstream. It is installed by licensed plumbers and pipefitters in both residential and light commercial applications.

The 105-502 is suited for 3/8-inch threaded piping systems where inline filtration is required. Typical installations include potable water supply lines, hydronic heating circuits, compressed air drops, and gas service lines where local code permits bronze body strainers. The FNPT connection is compatible with standard NPT male fittings per ANSI and ASME B1.20.1. The compact Y-body geometry allows installation in tight spaces with access to the strainer cap for screen cleaning without removing the body from the line.

Key Features

• Bronze body construction per ASTM B584 for corrosion resistance in water and gas service
• 300 psi WOG pressure rating suitable for a broad range of plumbing and mechanical applications
• 150 psi WSP rating for steam service installations
• 20-mesh screen captures particulate before downstream components
• FNPT end connections thread directly to standard NPT male fittings
• Meets ANSI, ASME B1.20.1, ASME B16.18, and ASTM B584 standards

Compatibility

Designed as an OEM-style inline strainer for 3/8-inch NPT threaded piping systems in plumbing, hydronic, and gas applications where a bronze body Y-strainer meets the specified pressure and material requirements.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and the International Plumbing Code (IPC). Shut off and depressurize the pipeline fully before making any threaded connections or removing the strainer cap for screen service. Apply thread sealant or PTFE tape to male NPT threads per standard practice. Orient the strainer so the screen pocket points downward or horizontally to allow sediment collection and to facilitate drainage during screen cleaning.
