Legend Valve 105-468NL 2 S-455 NL CXC In-Line Check

Product Description

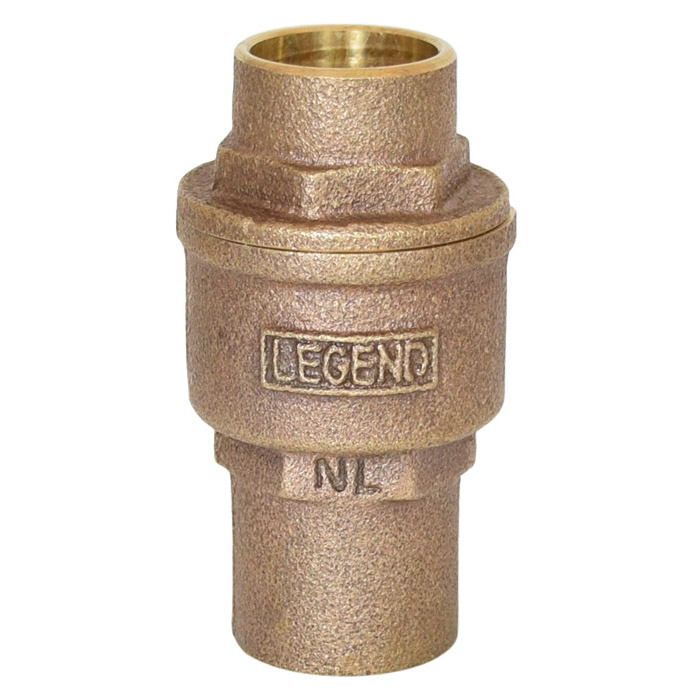

The Legend Valve 105-468NL is a 2 inch in-line check valve designed for use in plumbing systems. This product features a bronze body with a Buna-N (NBR) rubber seat disc and phosphor bronze wire spring trim. It is compliant with low-lead regulations, making it suitable for potables.

• Durable bronze construction for longevity
• Spring-loaded silent closure for optimal performance
• Installable in both vertical and horizontal positions

Product Highlights

The Legend Valve 105-468NL in-line check valve is ideal for commercial and industrial applications, providing reliable backflow prevention.

Product Information

Standard Information

• Manufacturer: Legend Valve
• MPN: 105-468NL

Technical Specifications

• Body Material: Bronze
• Nominal Size: 2 inches
• Pressure Rating: 250 psi CWP
• Temperature Rating: 200 degrees F
• Inlet to Outlet Length: 5.08 inches
• Actuator Type: Spring-Loaded Latch-Lock Handle
• Dimensions: 3.14 inches height
• Low Lead Compliance: Yes
