Product Description

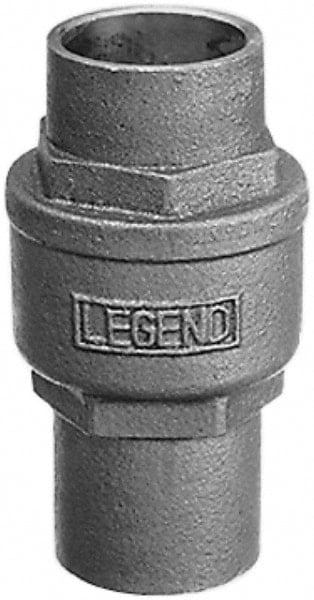

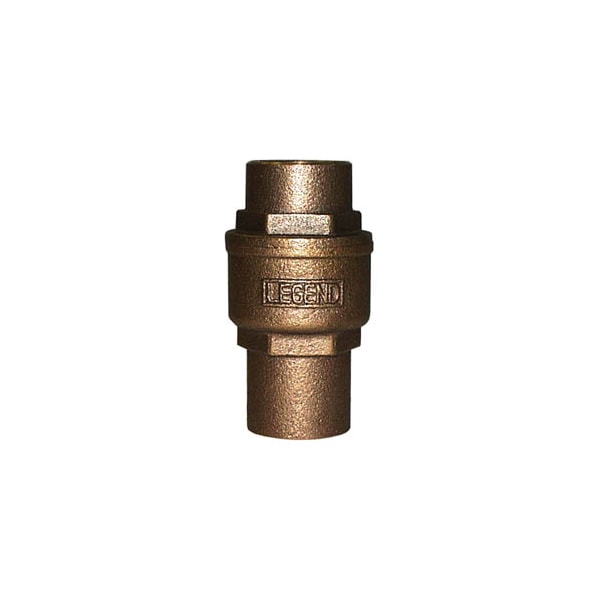

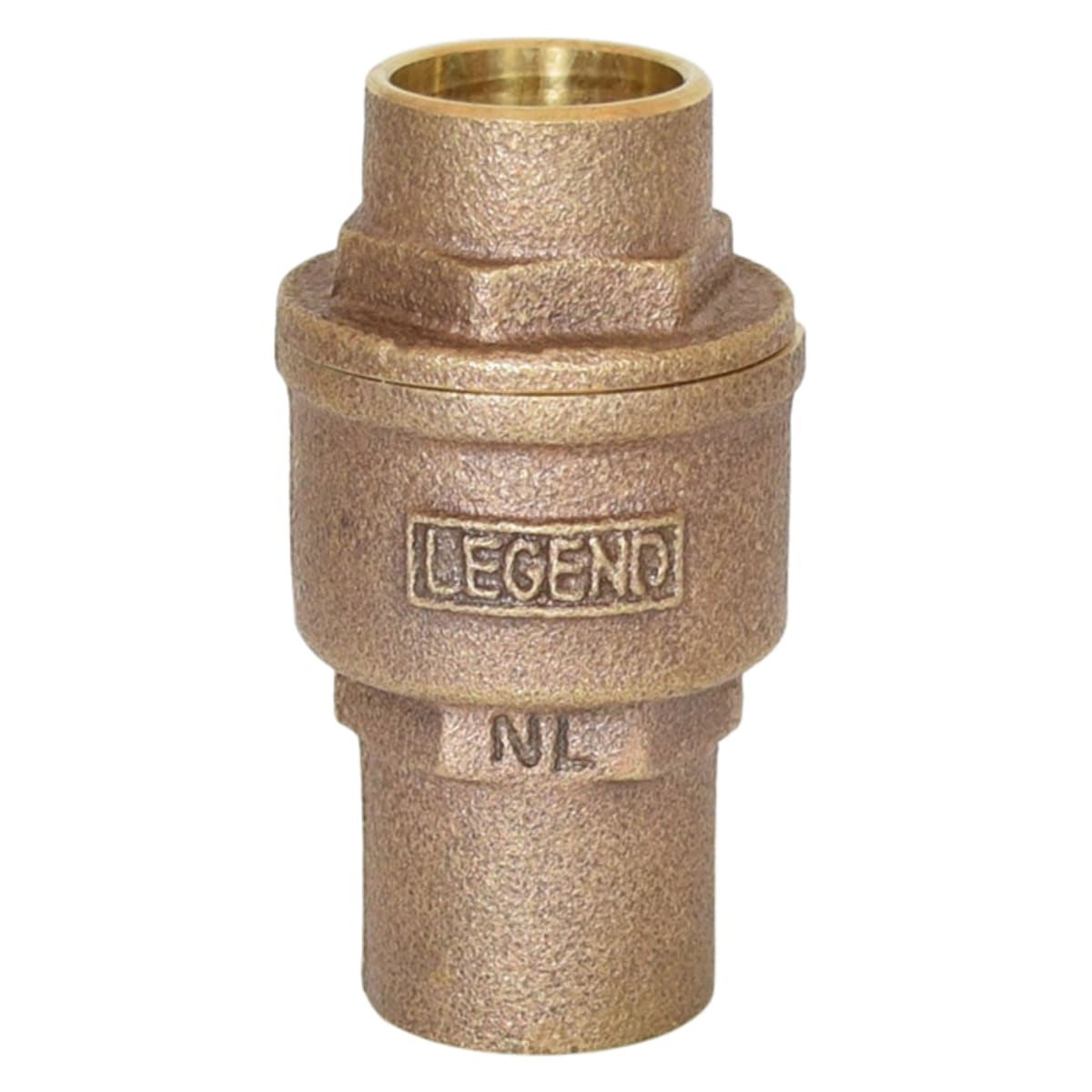

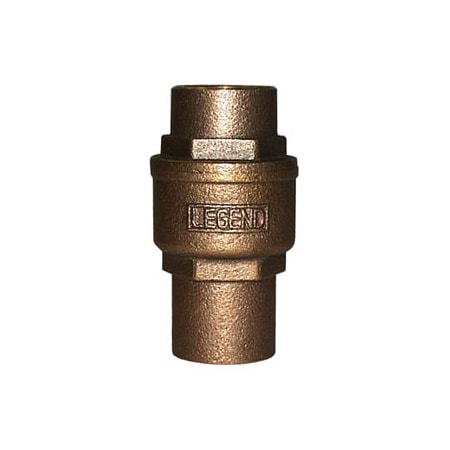

The Legend Valve 105-468 is a 2-inch S-455 series in-line bronze check valve with C x C (sweat) end connections. It provides one-way flow control using an internal spring-loaded poppet and Buna-N seat with phosphor bronze spring trim and a 1/2 lb cracking pressure. The valve is rated 125 WSP and 250 CWP with a maximum temperature of 200 deg F. Inlet-to-outlet length is 5.08 in and overall height is 3.14 in.
- Bronze body, 2 in nominal size with C x C (sweat) connections; S-455 series
- Pressure and temperature: 125 WSP, 250 CWP; maximum 200 deg F; inlet-to-outlet length 5.08 in, overall height 3.14 in
- Spring-loaded silent closure with 1/2 lb cracking pressure, Buna-N seat, phosphor bronze spring trim, bore-guided stem-poppet; installs vertically or horizontally
Product Highlights
2" cast bronze in-line spring check valve (S-455) for residential HVAC gas train and plumbing one-way flow control; 125 WSP / 250 CWP, max 200 deg F.
Product Information
Standard Information
-
Brand: LEGEND VALVE
-
Manufacturer Part Number: 105-468
-
Country of Origin: Taiwan, Province of China
Technical Specifications
-
Brand: Legend Valve
-
MPN: 105-468
-
Model / Series: S-455
-
Product Type: In-line check valve / spring check
-
Size: 2" (nominal)
-
Connection Type: C x C (sweat x sweat)
-
Body Material: Bronze / cast bronze
-
Trim Material: Phosphor bronze wire spring
-
Seat Material: Buna-N (NBR)
-
Cracking Pressure: 1/2 lb
-
Pressure Rating: 125 WSP; 250 CWP (250 psi CWP)
-
Temperature Rating: 200 deg F
-
Inlet-to-Outlet Length: 5.08 in
-
Overall Height: 3.14 in
-
Design Features: Bore-guided stem-poppet, spring-loaded silent closure
-
Installation Orientation: Can be installed vertically or horizontally
-
Recommended / Typical Applications: Residential HVAC gas valve / gas train; plumbing one-way flow control
-
Not Recommended For: Reciprocating air compressor installations
-
Country of Origin: Taiwan
-
Item Weight: 3.10 lbs
-
UPC / GTIN: 662545006666
