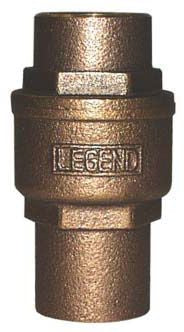

Legend Valve 105-467NL In-Line Spring Check Valve 1-1/2 Inch x 1-1/2 Inch

Product Description

The Legend Valve 105-467NL is an in-line spring check valve designed for various plumbing applications. This product features a nominal size of one and one-half inches by one and one-half inches and is crafted from durable bronze material.

• Spring-loaded design for silent operation
• Rated for a pressure of 250 pounds per square inch (PSI)
• Lead-free construction for safe drinking water compliance

Product Highlights

This check valve is essential for controlling the flow in plumbing systems, especially for potable water. Its in-line design allows for easy installation in both horizontal and vertical orientations.

Product Information

Standard Information

• Manufacturer: Legend Valve
• MPN: 105-467NL

Technical Specifications

• Body Material: ASTM B584 UNS C89844 Bronze
• Pressure Rating: 250 PSI CWP
• Temperature Rating: 200 Degrees Fahrenheit
• End Connection: Female Soldered x Female Soldered
• End to End Distance: 4.23 inches
• Spring Material: Phosphor Bronze
• Seal Material: Buna-N Rubber
• Applicable Standards: ANSI/ASME B16.18, NSF/ANSI 372, MSS SP 80, WQA, ISO 9002
