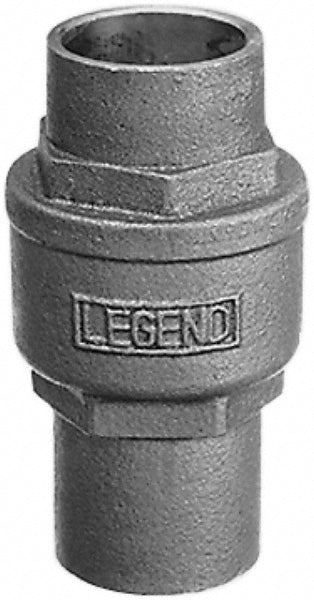

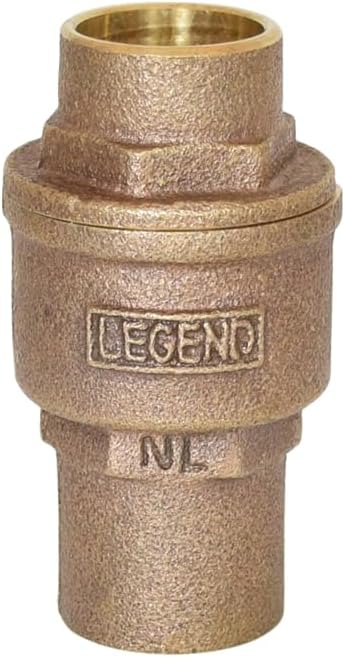

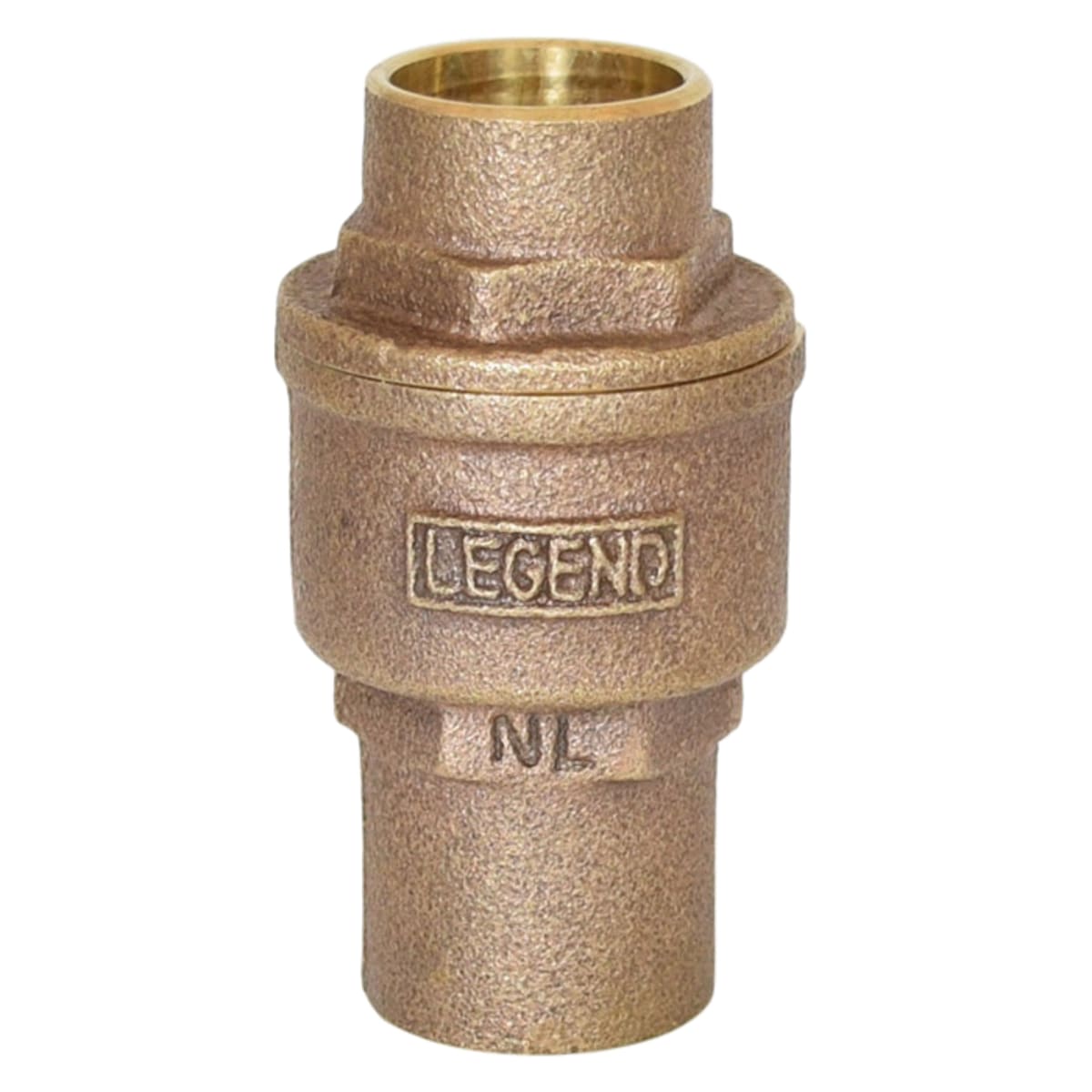

Legend Valve 105-467 1-1/2 "S-455 CXC In-Line Check

Product Description

The Legend Valve 105-467 is a 1-1/2 "S-455 CXC In-Line Check valve with a durable, heavy-wall cast bronze design suitable for commercial or industrial applications. It features spring-loaded silent closure operation and a 1/2 lb cracking pressure spring rate. This valve can be installed in vertical or horizontal positions and is not for reciprocating air compressor installations.

• Durable, heavy-wall cast bronze design ideal for commercial or industrial use.
• Spring-loaded silent closure operation.
• Can be installed in vertical or horizontal positions.

Product Highlights

Durable bronze in-line check valve with spring-loaded closure for versatile applications.

Product Information

Standard Information

• Brand: Legend Valve
• Manufacturer Part Number: 105-467
• Country of Origin: Import

Technical Specifications

• Body Material: Bronze
• End Style: C
• Inlet to Outlet Length: 4.23 in
• Nominal Size: 1-1/2 in
• Pressure Rating: 250 psi CWP
• Series: S-455
• Temperature Rating: 200 deg F
• Trim Material: Buna-N (NBR) Rubber Seat Disc/Phosphor Bronze Wire Spring
• Manufacturer: Legend Valve
• Size: 1-1/2"
• Type: In-Line Spring Checks
• Connection Type: Sweat
• Standards: ISO; MSS SP 80
• Valve Type: Inline
• End Connection: Soldered x Soldered
• Seal Material: Nitrile butadiene rubber
• Maximum Working Pressure: 250 psi
• Spring Material: Phosphor-Bronze
• Pipe Size: 1-1/2
