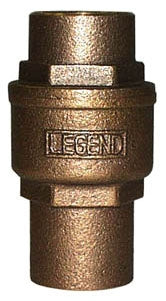

Legend Valve 105-466NL 1-1/4 In-Line Spring Check Valve

Product Description

The Legend Valve 105-466NL is an in-line spring check valve designed for use in plumbing and water systems. This valve features female soldered connections and a nominal size of one and one-quarter inches. It is constructed with ASTM B584 UNS C89844 bronze and has a Buna-N rubber disc. The valve can handle temperatures up to two hundred degrees Fahrenheit and pressure ratings of up to two hundred fifty PSI.

• Type: In-Line Spring
• Nominal Size: 1-1/4 Inches
• End Connection: Female Soldered x Female Soldered

Product Highlights

This check valve is suitable for various applications, including potable water systems, plumbing, and commercial uses.

Product Information

Standard Information

• Manufacturer: Legend Valve
• UPC: 66254509243

Technical Specifications

• Type: In-Line Spring
• Nominal Size: 1-1/4 Inches
• End Connection: Female Soldered x Female Soldered
• End to End Distance: 3.11 Inches
• Body Material: ASTM B584 UNS C89844 Bronze
• Disc Material: Buna-N Rubber
• Spring Material: ASTM B159 UNS C51000 Phosphor Bronze
• Temperature Rating: 200 Deg F
• Pressure Rating: 250 PSI CWP
• Applications: Potable Water, Plumbing, Commercial, Industrial
• Applicable Standards: ANSI/ASME B16.18, NSF/ANSI 372, MSS SP 80, WQA, ISO 9002
• Lead-Free: Yes
