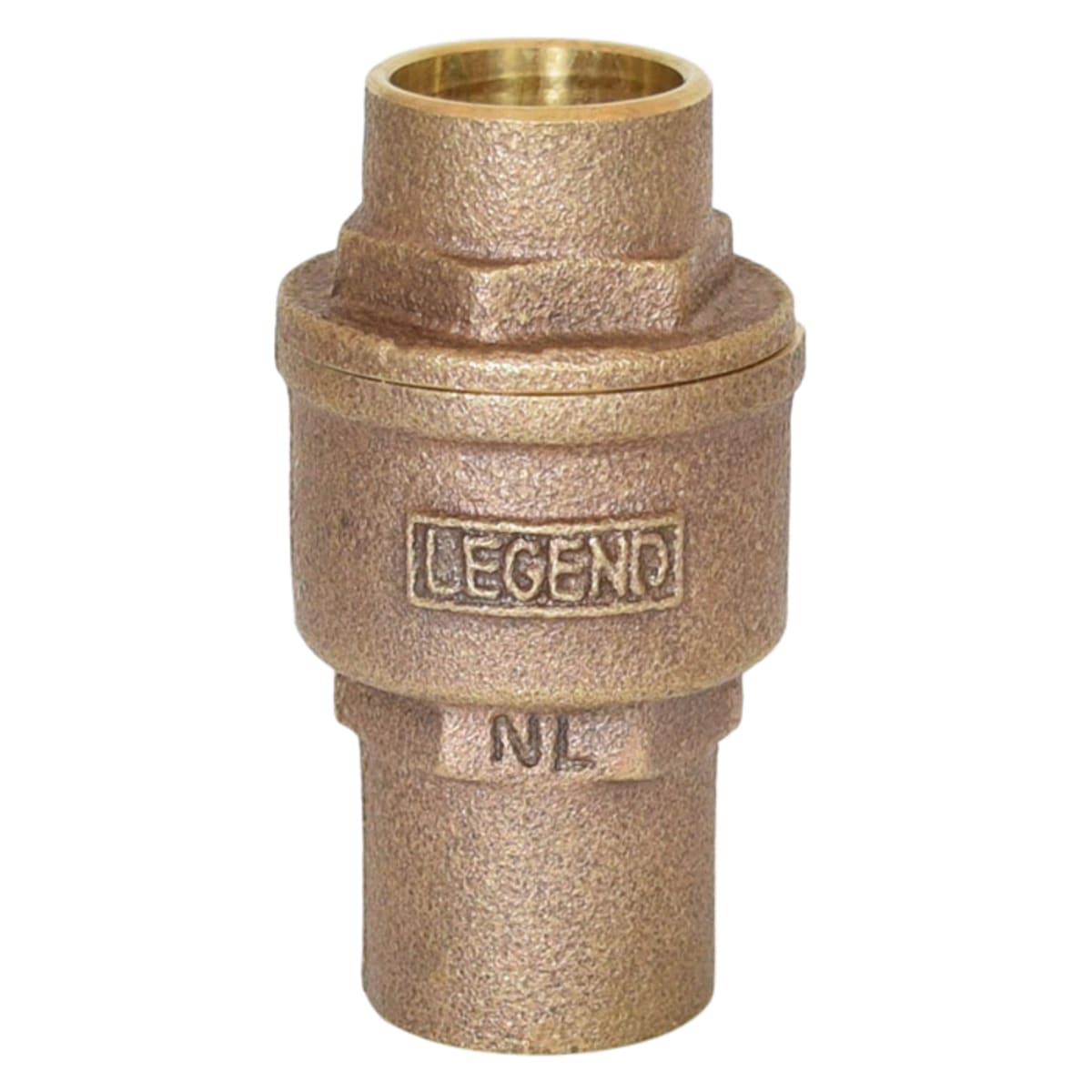

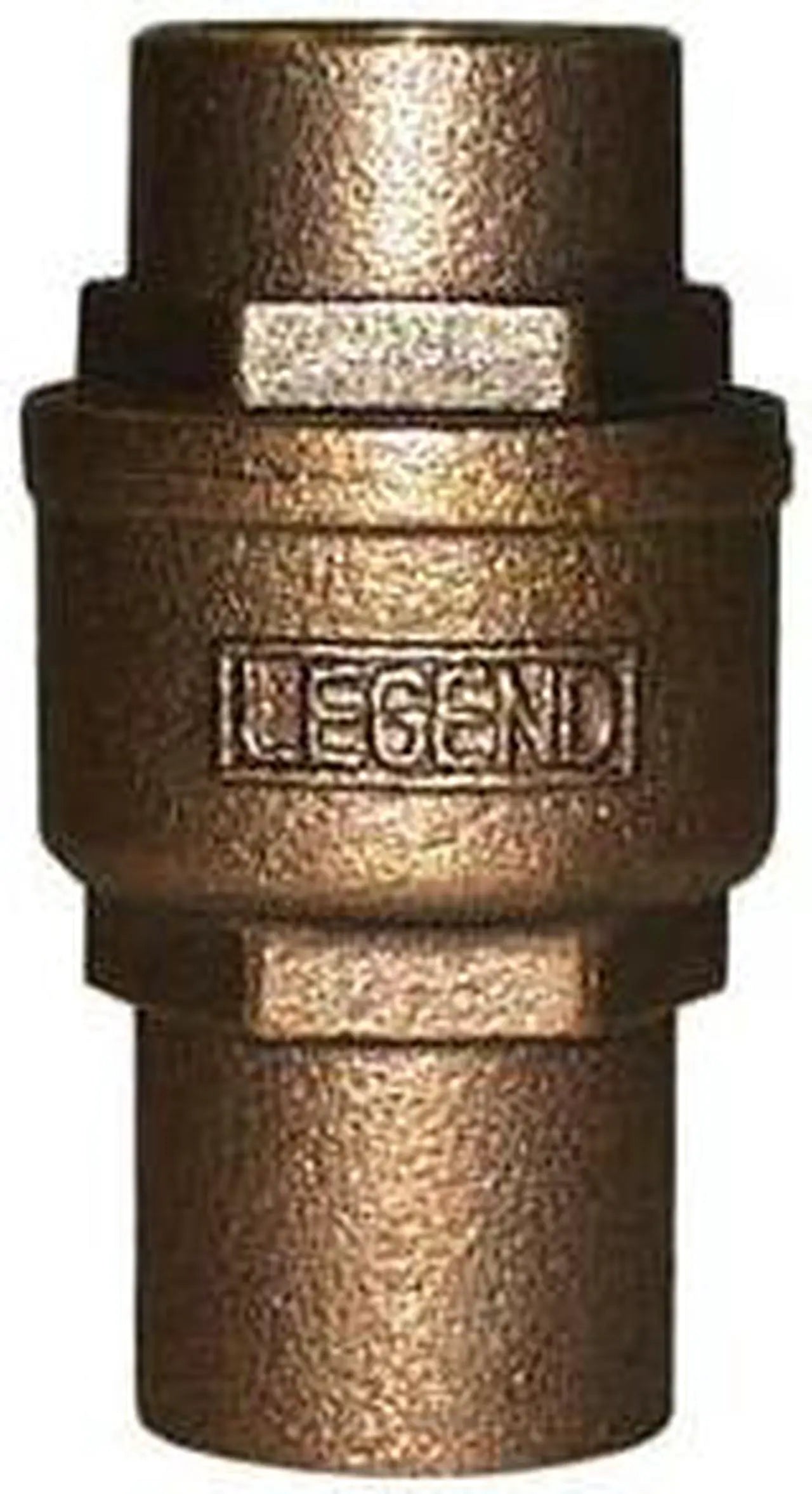

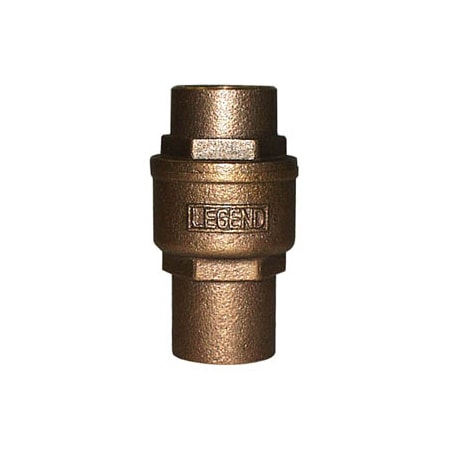

Legend Valve 105-466 S-455 CXC In-Line Check 1-1/4 inches

Product Description

LEGEND VALVE 105-466 is an S-455 series 1-1/4 inch nominal in-line check valve designed for commercial or industrial applications. It features a durable, heavy-wall cast bronze body and a Buna-N (NBR) rubber seat disc with a phosphor bronze wire spring trim. This valve operates with a spring-loaded latch-lock handle actuator and can withstand a pressure of 250 psi CWP and temperatures up to 200 deg F. Its bore-guided stem-poppet minimizes wear, ensuring reliable performance.

• Durable, heavy-wall cast bronze design is ideal for commercial or industrial applications
• Spring-loaded silent closure operation
• The 1/2 lb cracking pressure spring rate permits faster low-pressure opening without sacrificing quick closure in backflow scenarios

Product Highlights

Cast bronze construction with spring-loaded silent closure and bore-guided stem-poppet for minimized wear.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 105-466
• Country of Origin: Import

Technical Specifications

• Series: S-455
• End Style: C
• Manufacturer: LEGEND VALVE
• Nominal Size: 1-1/4 in
• Actuator Type: Spring-Loaded Latch-Lock Handle
• Body Material: Bronze
• Trim Material: Buna-N (NBR) Rubber Seat Disc/Phosphor Bronze Wire Spring
• Country of Origin: Import
• Pressure Rating: 250 psi CWP, 125 WSP
• Temperature Rating: 200 deg F
• Valve Type: In-Line Spring Checks
• Model: S-455 CXC
