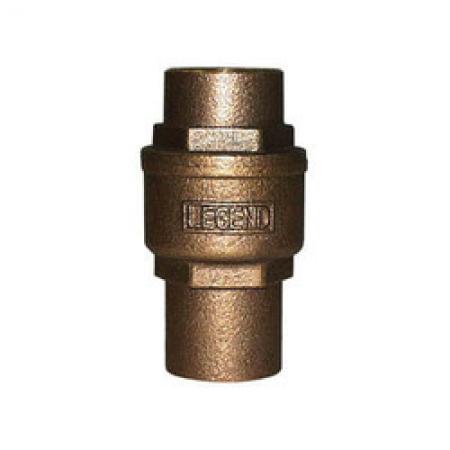

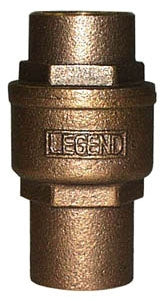

Legend Valve 105-465NL In-Line Spring Check Valve 1 Inch

Product Description

The Legend Valve 105-465NL is a reliable in-line spring check valve designed for various applications, including plumbing and commercial use. It has a nominal size of 1 inch and features female soldered connections on both ends. The valve is made from durable bronze, ensuring long-lasting performance. The temperature rating reaches up to two hundred degrees Fahrenheit, and it can handle pressure ratings of up to two hundred fifty PSI CWP.

• Nominal Size: 1 Inch
• Body Material: ASTM B584 UNS C89844 Bronze
• Lead-Free Design for Potable Water Applications

Product Highlights

This valve is ideal for applications that involve potable water in commercial and industrial settings. It complies with ANSI/ASME B16.18 standards.

Product Information

Standard Information

• Manufacturer: Legend Valve
• Model Number: 105-465NL

Technical Specifications

• Type: In-Line Spring
• End Connection: Female Soldered x Female Soldered
• End to End Distance: 2.68 Inches
• Disc Material: Buna-N Rubber
• Spring Material: ASTM B159 UNS C51000 Phosphor Bronze
• Applicable Standards: ANSI/ASME B16.18, NSF/ANSI 372, MSS SP 80, WQA, ISO 9002
• Inclusions/Features: Bronze End Adapter, Bronze Poppet
