Legend Valve 105-465 1 S-455 CXC In Line Check

Product Description

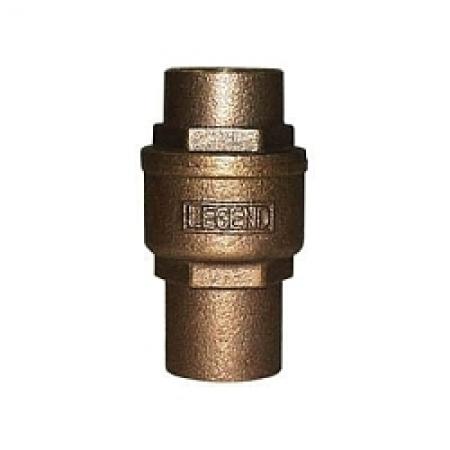

The Legend Valve 105-465 is a check valve designed for plumbing applications. This in-line check valve, with a nominal size of one inch, is suitable for various commercial and industrial uses. It features a bronze body and operates under a pressure rating of 250 psi. The unit is built to provide reliable flow control in plumbing systems.

• Durable bronze construction
• Spring-loaded silent closure feature
• Versatile installation for vertical or horizontal orientation

Product Highlights

This check valve is engineered for dependable performance in backflow scenarios, preventing unwanted reverse flow in plumbing applications.

Product Information

Standard Information

• Brand: Legend Valve
• MPN: 105-465

Technical Specifications

• Actuator Type: Spring-Loaded Latch-Lock Handle
• Body Material: Bronze
• Dimensions: 1.89 inches in height
• End Style: C
• Inlet to Outlet Length: 3.54 inches
• Nominal Size: 1 inch
• Pressure Rating: 250 psi CWP
• Temperature Rating: 200 degrees Fahrenheit
• Softgoods Material: Buna-N Rubber Seat Disc
• Trim Material: Buna-N (NBR) Rubber Seat Disc/Phosphor Bronze Wire Spring
• Domestic/Import: Import
