Product Description

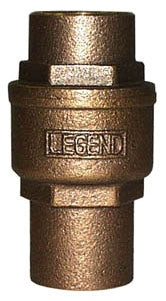

The Legend Valve 105-464NL is a three-fourth inch in-line spring check valve designed for reliable flow control in various applications. This valve features female soldered connections and a durable bronze body, ensuring longevity and performance. It is suitable for potable water systems, plumbing, commercial, and industrial use. The valve operates under a pressure rating of 250 PSI CWP and a temperature rating of 200 degrees Fahrenheit.
- Body material made from ASTM B584 UNS C89844 bronze.
- Spring-loaded silent closure operation to minimize noise.
- Lead-free construction compliant with local laws.
Product Highlights
The Legend Valve 105-464NL provides efficient backflow prevention with a bore-guided stem poppet that minimizes over travel. This valve meets ANSI/ASME and NSF standards and is ideal for various plumbing installations.
Product Information
Standard Information
-
Manufacturer: Legend Valve
-
UPC: 66254509241
Technical Specifications
-
Type: In-Line Spring
-
Nominal Size: 3/4 Inch
-
End Connection: Female Soldered x Female Soldered
-
End to End Distance: 2.32 Inch
-
Body Material: ASTM B584 UNS C89844 Bronze
-
Disc Material: Buna-N Rubber
-
Spring Material: ASTM B159 UNS C51000 Phosphor Bronze
-
Temperature Rating: 200 Deg F
-
Pressure Rating: 250 PSI CWP
-
Features: Bronze End Adapter, Bronze Poppet
-
Applicable Standard: ANSI/ASME B16.18, NSF/ANSI 372, MSS SP 80, WQA, ISO 9002
- Lead-Free
