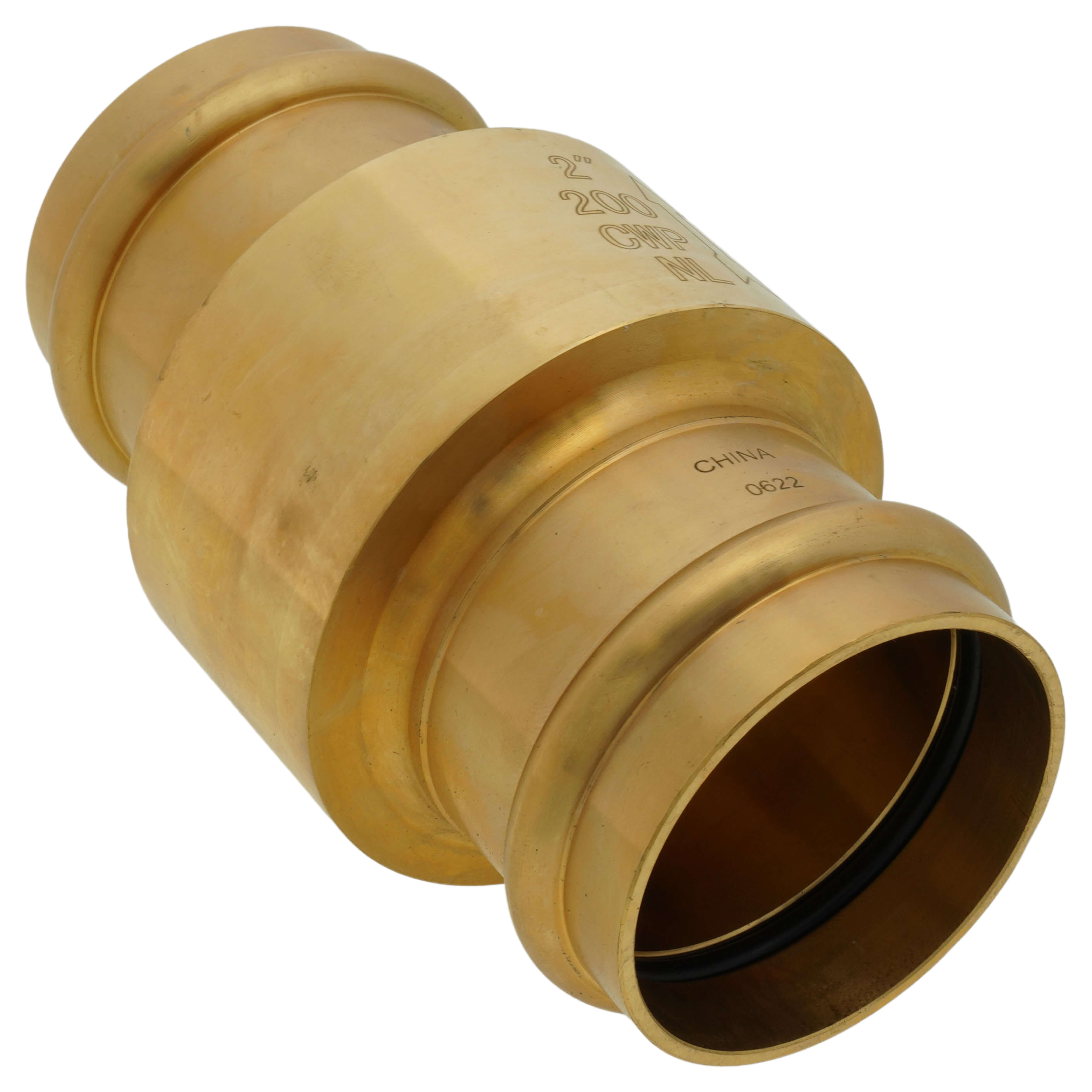

Legend Valve 105-458NL 2 P-450NL Press Inline Check Valve

Product Description

The Legend Valve 105-458NL is a 2-inch press inline check valve designed for plumbing applications. This valve utilizes lead-free forged brass materials and is compliant with NSF/ANSI standards. It operates efficiently under a cold working pressure of two hundred psi and withstands temperatures up to one hundred eighty degrees Fahrenheit. The valve features a compact design with an overall length of five point thirty-two inches and a width of three point zero nine inches.

• Large sealing surfaces for reliable closure
• Quiet operation due to EPDM seat
• Versatile installation in vertical or horizontal orientations

Product Highlights

This check valve is essential in preventing backflow in water systems, suitable for use with ASTM B88 type K, L, and M hard-drawn copper tubing. Its design includes VUS-pattern press-connection sockets for easy integration into existing piping systems.

Product Information

Standard Information

• Manufacturer: Legend Valve
• Part Number: 105-458NL

Technical Specifications

• Body Material: Brass
• Dimensions: 3.09 inches W
• Connection Type: Press
• Nominal Size: 2 inches
• Inlet to Outlet Length: 5.32 inches
• Media: Water
• Pressure Rating: 200 psi CWP
• Temperature Rating: Up to 180 degrees F
• Softgoods Material: EPDM
• Trim Material: Stainless Steel/EPDM
• Series: P-450NL
