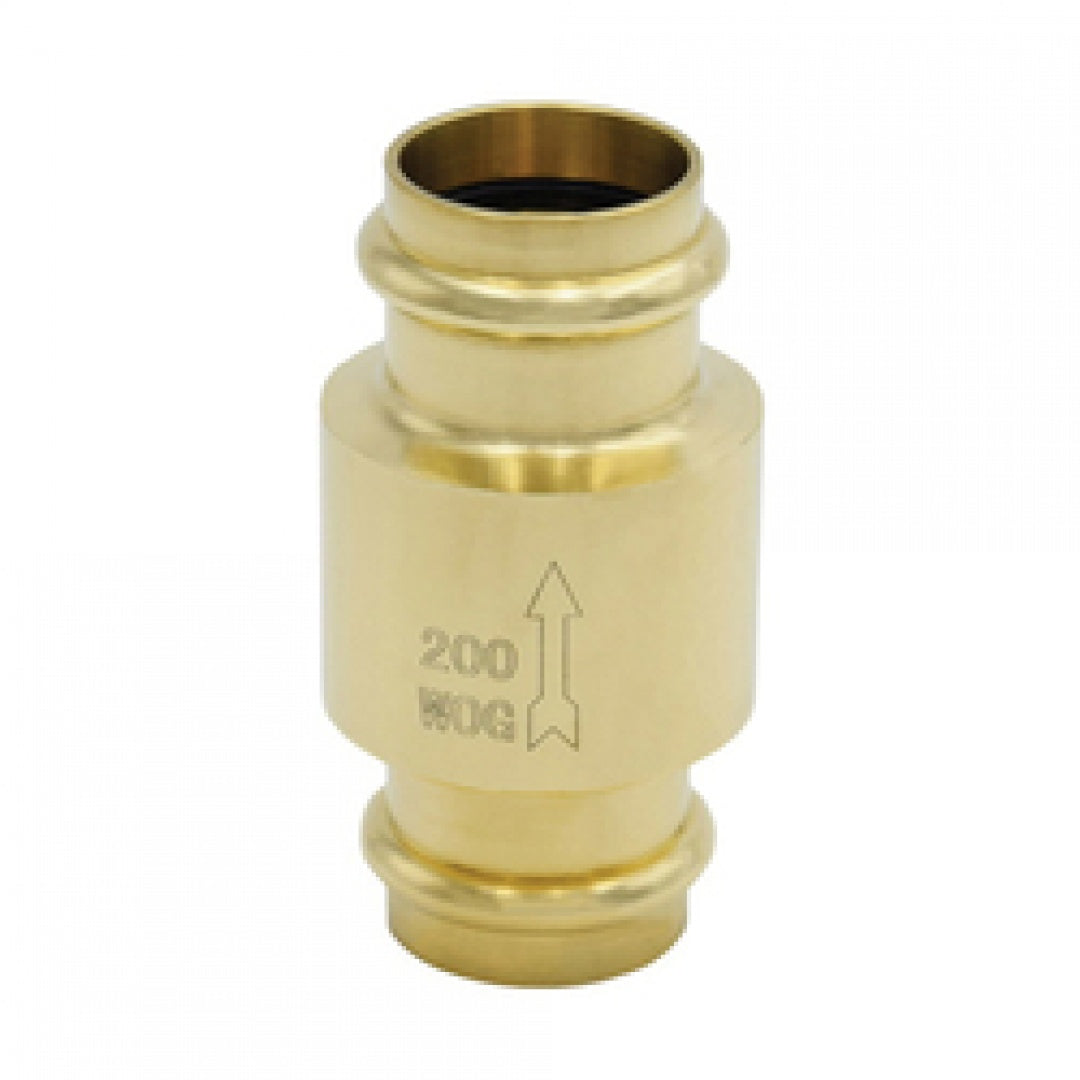

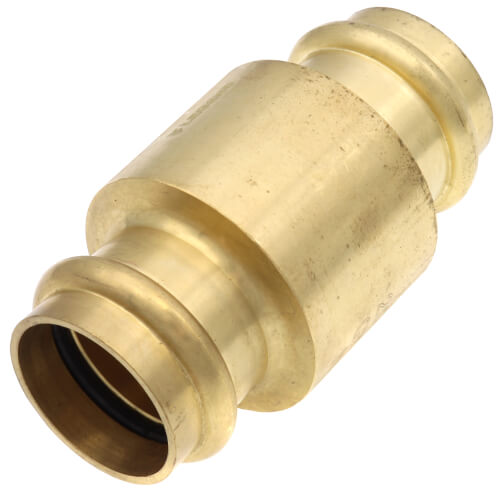

Legend Valve 105-455NL 1 P-450NL Press Inline Check Valve

Product Description

The Legend Valve 105-455NL is a 1-inch P-450NL Press Inline Check Valve. This valve includes a large, integral seat and disc sealing surfaces for positive closure. The valve is made of brass with stainless steel and EPDM trim, making it ideal for water applications. The valve operates up to 200 psi and 180 degrees Fahrenheit.

• 1-inch nominal size
• 200 psi CWP rating
• Brass body with EPDM seat

Product Highlights

1-inch P-450NL Press Inline Check Valve for water applications. It is made from durable brass and includes stainless steel and EPDM components. Suitable for vertical and horizontal installations.

Product Information

Standard Information

• Brand: Legend Valve
• Category: Check Valve

Technical Specifications

• Body Material: Brass
• Dimensions: 1.77 inches W
• Domestic/Import: Import
• End Style: Press
• Inlet to Outlet Length: 3.39 inches
• Media: Water
• Nominal Size: 1 inch
• Pressure Rating: 200 psi CWP
• Series: P-450NL
• Softgoods Material: EPDM
• Temperature Rating: Up to 180 degrees Fahrenheit
• Trim Material: Stainless Steel/EPDM
• Type: Forged
