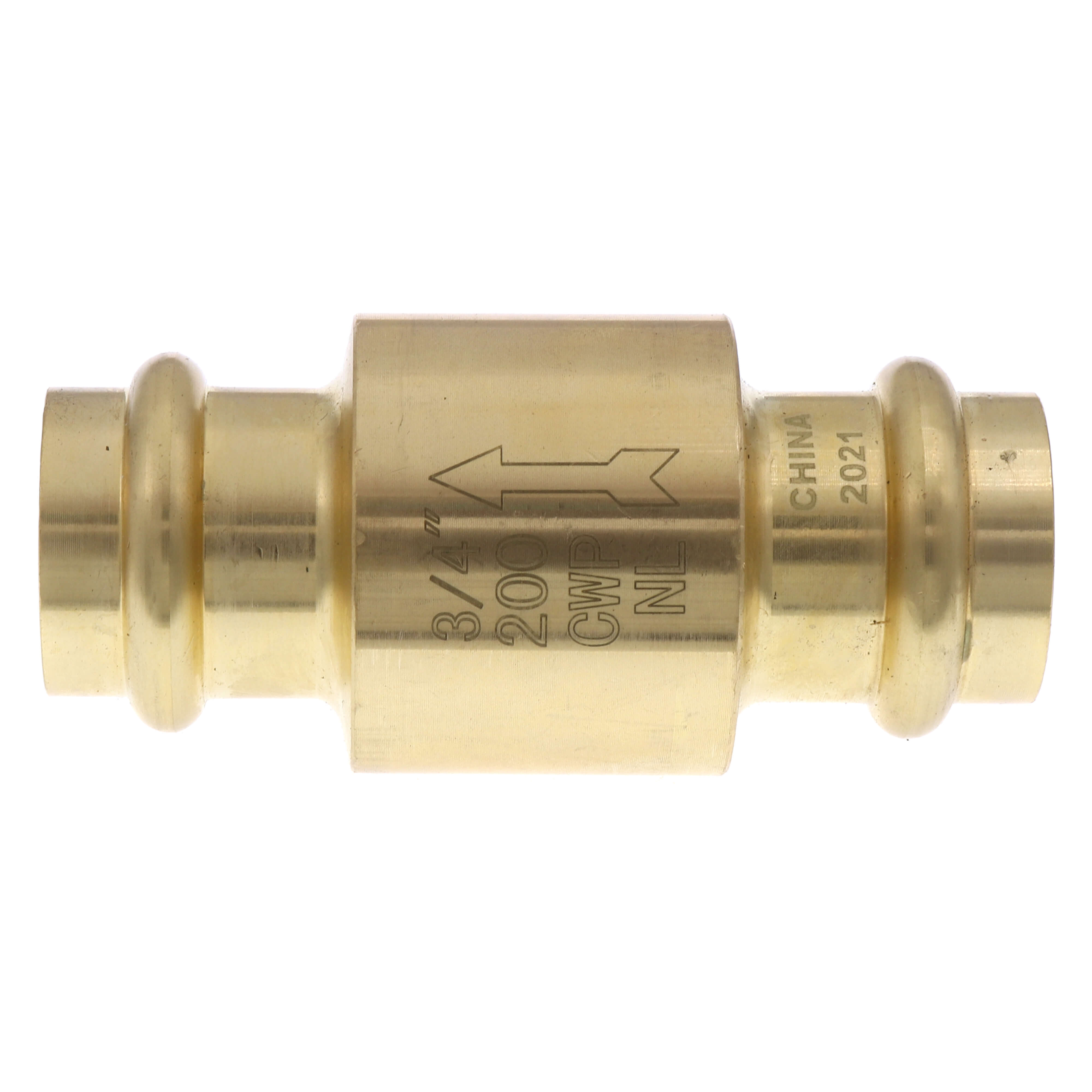

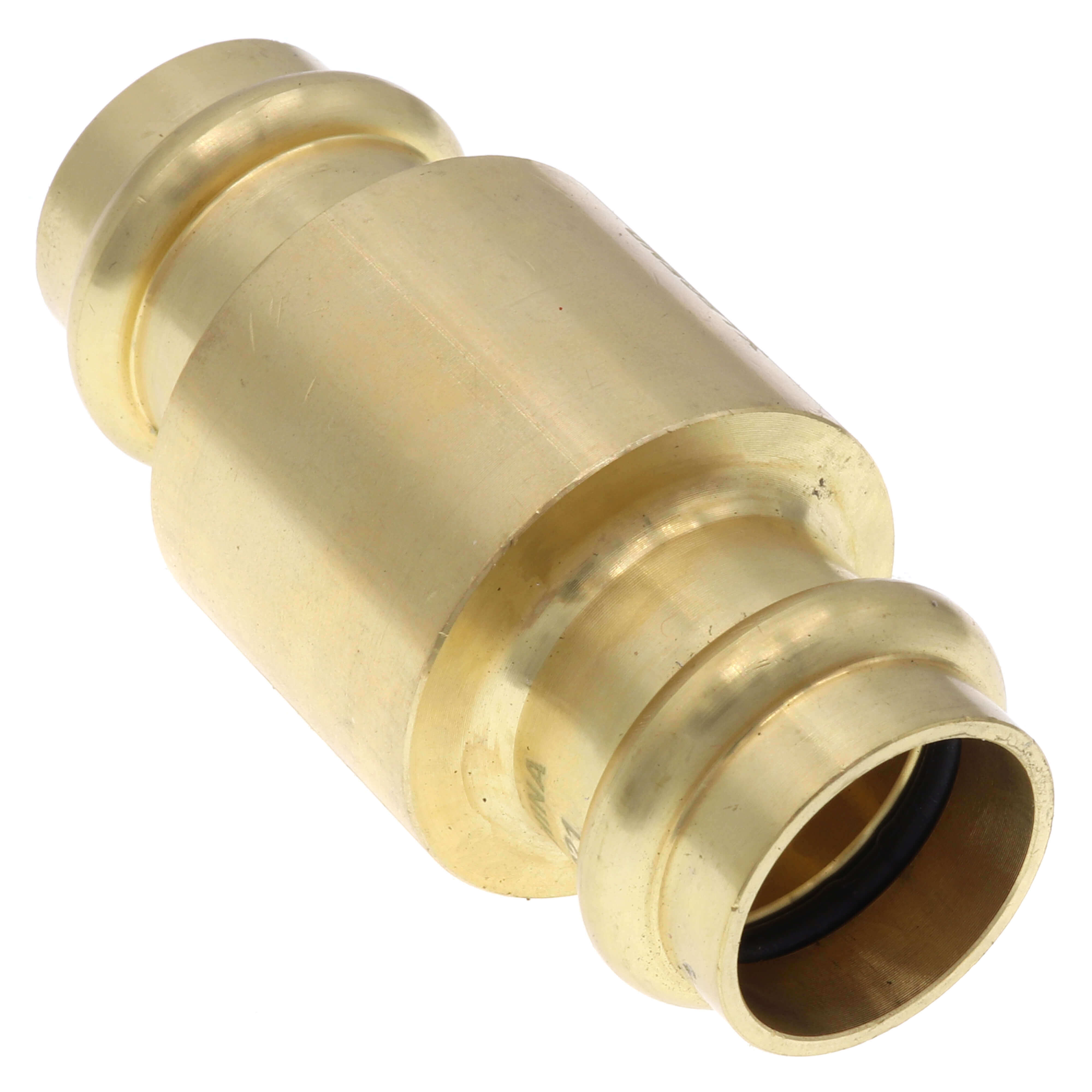

Legend Valve 105-454NL 3/4 P-450NL PRESS INLINE CHECK

Product Description

The Legend Valve 105-454NL is a 3/4 inch P-450NL press inline check valve. This type of valve is designed for use in plumbing applications to prevent backflow. The valve is made from lead-free forged brass and is suitable for water media with a working pressure of up to 200 psi. It can accommodate temperatures reaching up to 180 degrees Fahrenheit.

• Press connection type for easy installation.
• Suitable for vertical and horizontal installations.
• Manufactured for ASTM B88 types K, L, and M hard drawn copper tubing.

Product Highlights

Designed to ensure positive closure and quiet operation, the valve features an EPDM seat and a spring-loaded stem disc. Installation is straightforward, making it a practical choice for plumbing professionals.

Product Information

Standard Information

• Manufacturer: Legend Valve
• Type: Press inline check valve

Technical Specifications

• Body Material: Brass
• Nominal Size: 3/4 inch
• Inlet to Outlet Length: 3.2 inches
• Pressure Rating: 200 psi CWP
• Temperature Rating: Up to 180 degrees Fahrenheit
• Softgoods Material: EPDM
• Trim Material: Stainless Steel/EPDM
• Domestic/Import: Import
