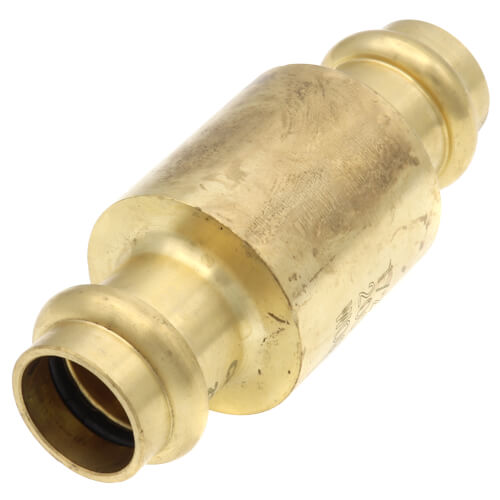

Legend Valve 105-453NL 1/2 P-450NL Press Inline Check Valve

Product Description

The Legend Valve 105-453NL is a 1/2 inch press inline check valve designed for plumbing systems. It meets industry standards and features a lead-free forged brass body. This valve is rated for a maximum pressure of 200 psi and can handle water media at temperatures up to 180 degrees Fahrenheit.

• Compatible with ASTM B88 types K, L, and M hard drawn copper tubing.
• Can be installed in vertical and horizontal orientations.
• Equipped with EPDM seat for quiet operation.

Product Highlights

This valve is ideal for both residential and commercial plumbing applications. Its robust construction ensures reliability in preventing backflow while maximizing water flow efficiency.

Product Information

Standard Information

• Manufacturer: Legend Valve
• Type: Forged
• Nominal Size: 1/2 inch

Technical Specifications

• Body Material: Brass
• Inlet to Outlet Length: 3.15 inches
• Pressure Rating: 200 psi CWP
• Softgoods Material: EPDM
• Temperature Rating: Up to 180 degrees Fahrenheit
• Trim Material: Stainless Steel/EPDM
• Connection Type: Press x Press
• Dimensions: 1.22 inches Width
