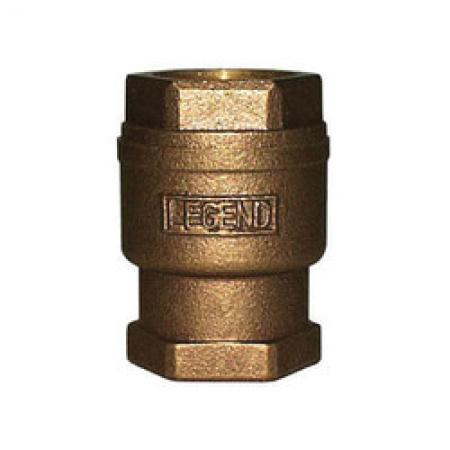

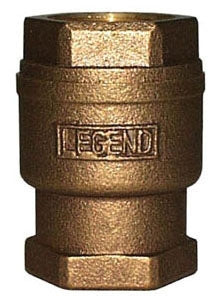

Legend Valve 105-447NL In-Line Spring Check Valve 1-1/2 Inch

Product Description

The Legend Valve 105-447NL is an in-line spring check valve designed for various plumbing applications. With a nominal size of one and a half inches, this valve features female threaded connections. The robust bronze body construction ensures durability and compliance with relevant plumbing standards.

• Features an in-line spring design for effective backflow prevention.
• Temperature rating of up to two hundred degrees Fahrenheit.
• Lead-free construction suitable for potable water applications.

Product Highlights

This check valve is ideal for commercial and industrial use, suitable for potable water in plumbing systems.

Product Information

Standard Information

• Manufacturer: Legend Valve
• UPC: 66254509238

Technical Specifications

• Type: In-Line Spring
• Nominal Size: One and a half inches by one and a half inches
• End Connection: Female Threaded by Female Threaded
• End to End Distance: 3.47 inches
• Body Material: ASTM B584 UNS C89844 Bronze
• Spring Material: ASTM B159 UNS C51000 Phosphor Bronze
• Seal Material: Buna-N Rubber
• Temperature Rating: 200 degrees Fahrenheit
• Pressure Rating: 250 PSI CWP
• Inclusions/Features: Bronze End Adapter/Poppet, Phosphor Bronze Wire Spring
• Applicable Standard: ANSI/ASME B1.20.1, NSF/ANSI 372, MSS SP 80, WQA, ISO 9002
• Application: Potable Water, Plumbing, Commercial, Industrial
