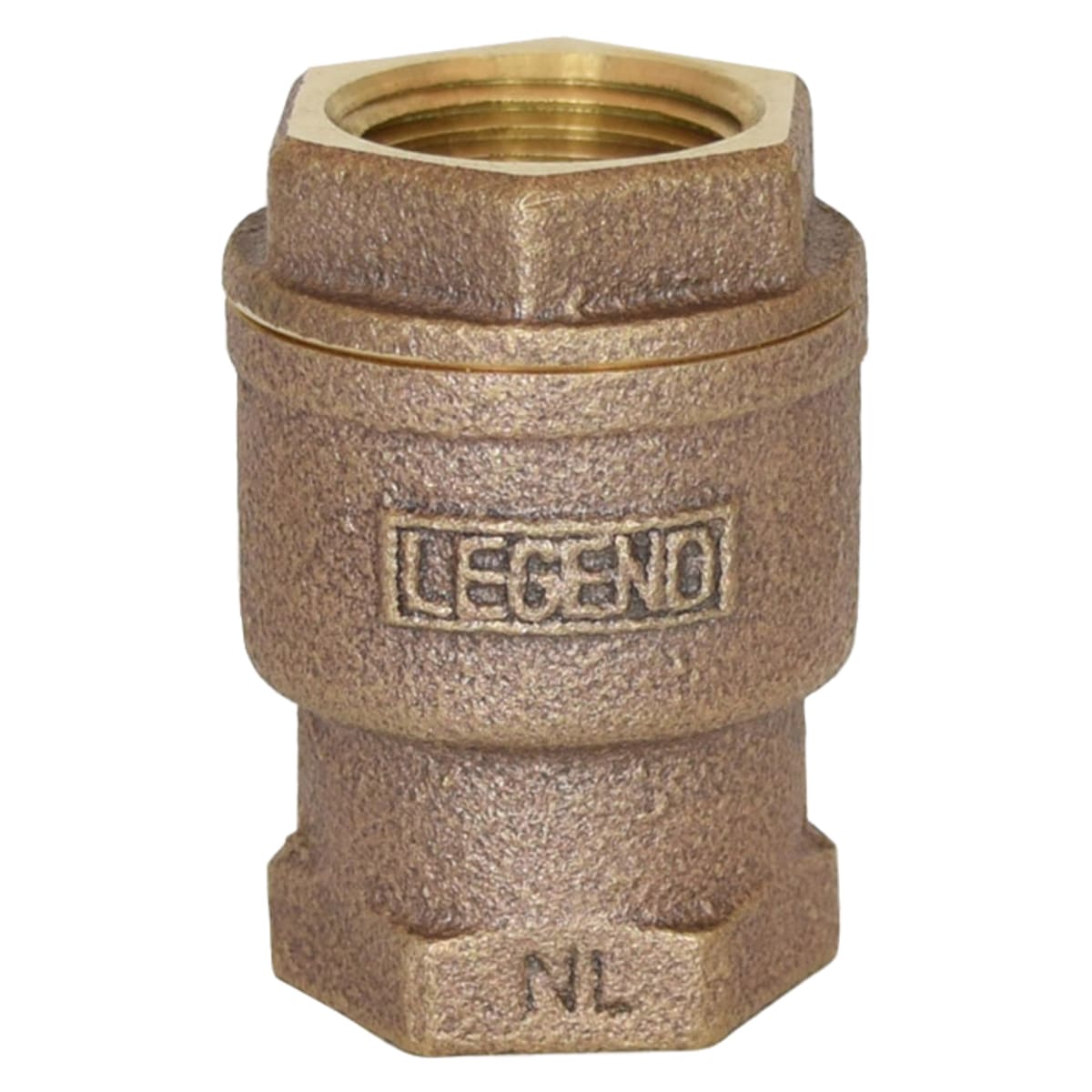

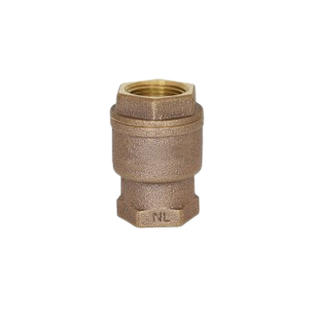

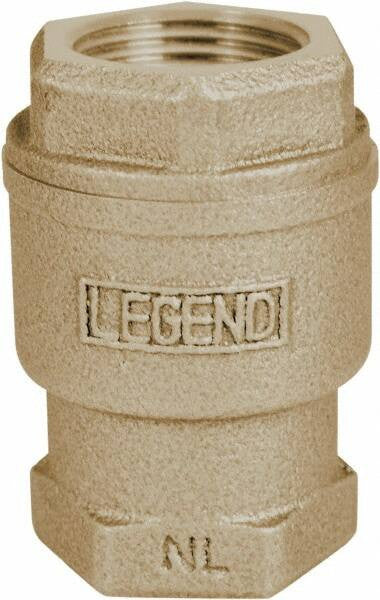

Legend Valve 105-446NL T-455 Spring Ck Vlv Ips 1-1/4 in

Product Description

The LEGEND VALVE 105-446NL T-455 Spring Check Valve IPS is designed for commercial and industrial applications. Its durable, heavy-wall cast bronze design ensures longevity. The spring-loaded silent closure operation allows faster low-pressure opening. It can be installed in vertical or horizontal positions and is lead-free, suitable for potable water installations.

• Durable, heavy-wall cast bronze design
• Spring-loaded silent closure operation
• Can be installed in the vertical or horizontal position

Product Highlights

Ideal for preventing backflow in various plumbing systems, this valve offers a reliable solution for maintaining water quality and system integrity.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 105-446NL
• Country of Origin: Import

Technical Specifications

• Body Material: Lead-Free Bronze
• End Style: FNPT
• Inlet to Outlet Length: 3.11 in
• Low Lead Compliance: Yes
• Nominal Size: 1-1/4 in
• Pressure Rating: 250 psi CWP
• Series: T-455NL
• Softgoods Material: Buna-N Rubber Seat Disc
• Temperature Rating: 200 deg F
• Trim Material: Buna-N (NBR) Rubber Seat Disc/Phosphor Bronze Wire Spring
• Manufacturer: LEGEND VALVE
• Connection Type: FNPT x FNPT
• Material: Bronze
• Valve Type: In-Line
• Crack Pressure (psi): 0.50
• Seal Material: Nitrile butadiene rubber
• Maximum Working Pressure: 250psi
• Lead Free: Yes
• Material Grade: UNS C89844 Alloy
• Port Type: Full
• Cv Rating: 21.000
• Spring Material: Phosphor-Bronze
• Pipe Size: 1-1/4
• Standards: MSS SP 80, NSF/ANSI 372
