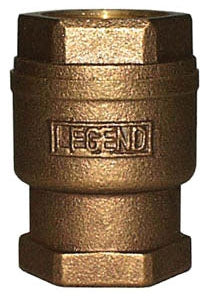

Legend Valve 105-445NL in-Line Spring Check Valve 1 Inch Replacement MPN

Product Description

The Legend Valve 105-445NL is a one-inch in-line spring check valve designed for various plumbing applications. This valve features a female threaded connection on both ends and is constructed from high-quality bronze material.

• Designed for portable water applications.
• Lead-free construction complies with national standards.
• Temperature rated up to two hundred degrees Fahrenheit.

Product Highlights

This check valve prevents backflow and is suitable for commercial and industrial plumbing, ensuring reliable performance in demanding situations.

Product Information

Standard Information

• Brand: Legend Valve
• MPN: 105-445NL

Technical Specifications

• Type: In-Line Spring
• Nominal Size: 1 Inch
• End Connection: Female Threaded x Female Threaded
• End to End Distance: 2.68 Inch
• Body Material: ASTM B584 UNS C89844 Bronze
• Disc Material: Buna-N Rubber
• Spring Material: ASTM B159 UNS C51000 Phosphor Bronze
• Temperature Rating: 200 Deg F
• Pressure Rating: 250 PSI CWP
• Inclusions/Features: Bronze End Adapter, Bronze Poppet
• Application: Potable Water, Plumbing, Commercial, Industrial
• Applicable Standard: ANSI/ASME B1.20.1, NSF/ANSI 372, MSS SP 80, WQA, ISO 9002
