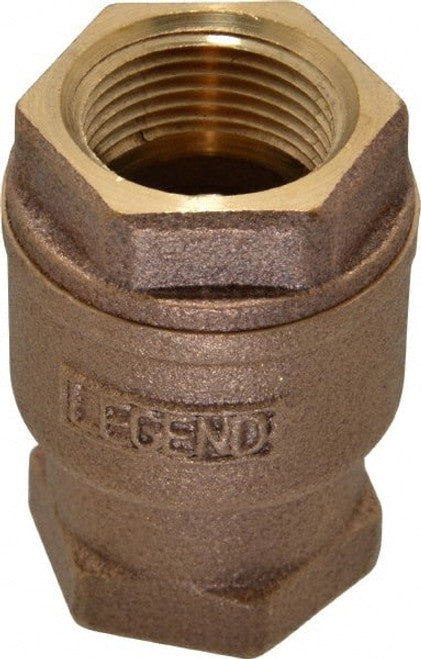

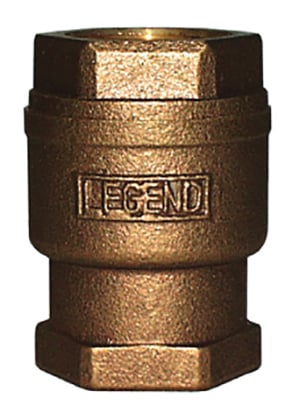

Legend Valve 105-444 T-455 In-Line Check Valve 3/4 in FNPT

Product Description

The Legend Valve 105-444 T-455 In-Line Check Valve is a durable option for various applications. Made from heavy-wall cast bronze, this valve is suited for commercial and industrial use. It operates with a spring-loaded mechanism that ensures a silent closure. The valve can be installed in both vertical and horizontal orientations, making it versatile for different plumbing setups.

• Durable cast bronze construction
• Spring-loaded silent closure operation
• 1/2 lb cracking pressure for low-pressure openings

Product Highlights

This check valve is designed to prevent backflow in plumbing systems, ensuring smooth fluid flow.

Product Information

Standard Information

• Body Material: Cast Bronze
• End Style: FNPT

Technical Specifications

• Actuator Type: Spring Loaded
• Inlet to Outlet Length: 2.32 inches
• Manufacturer: Legend Valve
• Manufacturer #: 105-444
• Series: T-455
• Temperature Rating: 200 degrees Fahrenheit
• Product Type: Check Valve
• Valve Type: In-Line
• Connection Type: FNPT x FNPT
• Crack Pressure: 0.50 psi
• Seal Material: Nitrile Butadiene Rubber
• Maximum Working Pressure: 250 psi
• Standards: ISO, MSS SP 80
• Spring Material: Phosphor-Bronze
• Pipe Size: 3/4 inches
