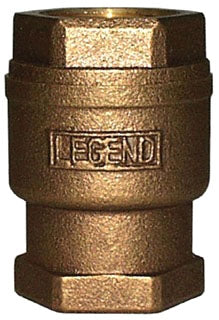

Legend Valve 105-443 In-Line Check Valve 1/2 inch

Product Description

The Legend Valve 105-443 T-455 is an in-line check valve with a nominal size of half an inch, designed for both commercial and industrial use. This valve utilizes a spring-loaded, poppet-type mechanism for effective flow control. It is made from ASTM B584 UNS C84400 cast bronze and features a durable Buna-N rubber seat. It can be installed in both vertical and horizontal orientations.

• In-line design for versatility
• Spring-loaded for optimal performance
• Poppet type ensures reliable operation

Product Highlights

This check valve is suitable for a variety of applications and is known for its robust construction, making it an essential component for plumbing and fluid systems.

Product Information

Standard Information

• Applicable Standard: ANSI/ASME B1.20.1/B16.18
• Application: Commercial, Industrial

Technical Specifications

• Temperature Rating: 200 degrees F
• Body Material: ASTM B584 UNS C84400 Cast Bronze
• Pressure Rating: 250 PSI at 200 degrees F, 250 PSI non-shock CWP
• End Connection: Female Threaded x Female Threaded
• End to End Distance: 2.09 inches
• Seat Material: Buna-N Rubber
• Spring Material: ASTM B159 UNS C51000 Phosphor Bronze
• Disc Material: Buna-N Rubber
• Model: T-455
• Nominal Size: 1/2 inch
• Domestic / Import: Import
• End Style: FNPT
• Actuator Type: Spring Loaded
