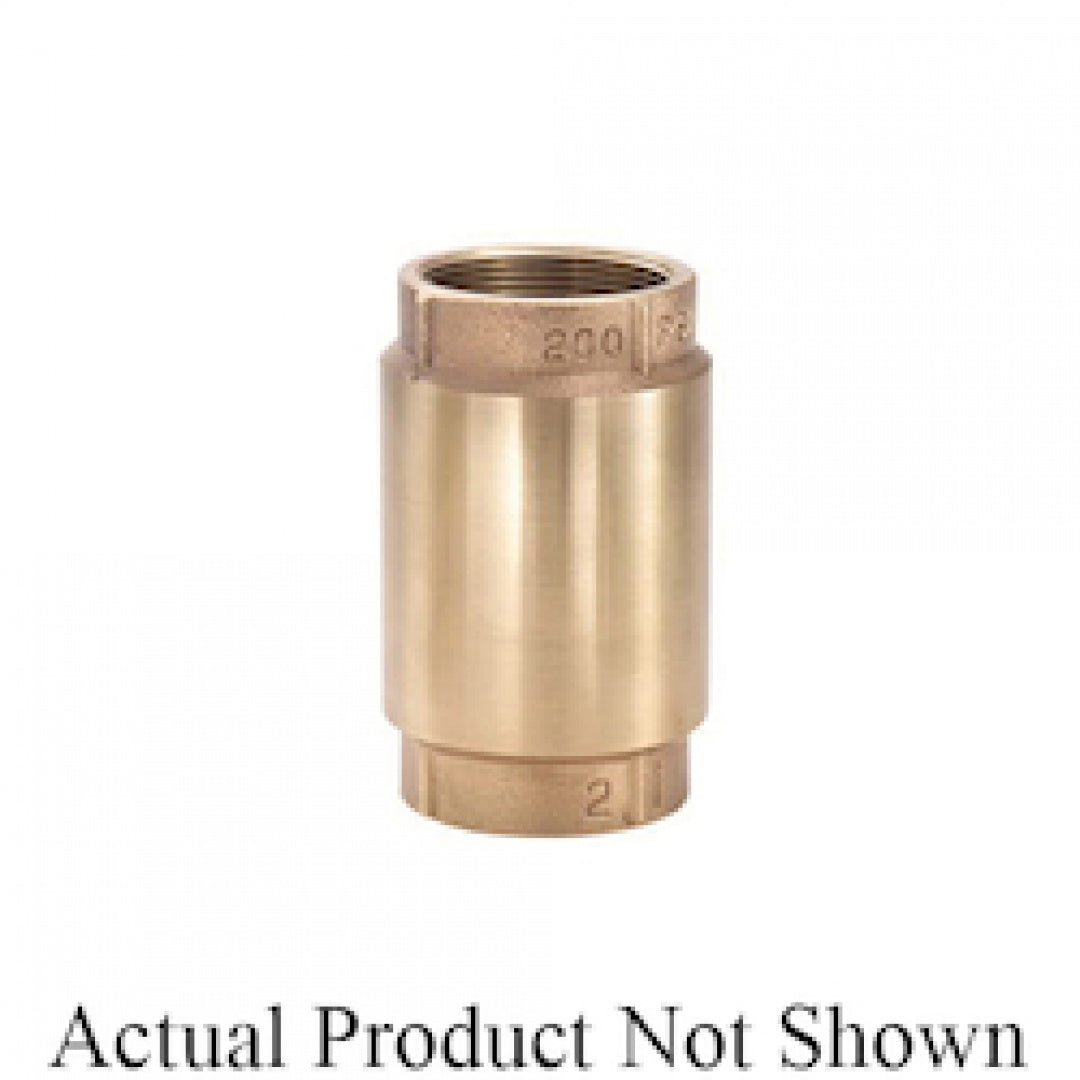

Legend Valve 105-427NL Check Valve Lead-Free 1-1/2 Inch

Product Description

The Legend Valve model 105-427NL offers a robust solution for controlling backflow in plumbing systems, featuring a 1-1/2 inch female threaded connections on both ends. This lead-free valve is manufactured from UNS C87850 cast bronze alloy, ensuring durability and compliance with NSF/ANSI 372 and ISO 9002 standards.

• Designed for inline installation to maintain unidirectional flow.
• Supports a pressure rating of 200 PSI CWP, suitable for commercial and industrial applications.
• Equipped with a spring-loaded stem disk to prevent backflow and ensure fast closure.

Product Highlights

Legend Valve's spring-loaded check valve features a heavy-wall cast bronze design, making it appropriate for water well applications and potable water systems. Its Buna-N seal offers excellent resistance to various temperatures and pressures, maintaining a reliable seal. The valve operates effectively at temperatures up to 200 degrees Fahrenheit.

Product Information

Standard Information

• Media Type: Water
• Potable Water Regulation: Yes - Complies with NSF/ANSI, lead-free

Technical Specifications

• Body Material: UNS C87850 Cast Bronze Alloy
• Disc Material: UNS C87850 Cast Bronze Alloy
• Spring Material: AISI 304 Stainless Steel
• Seal Material: Buna-N Rubber
• Temperature Rating: 200 Degrees Fahrenheit
• Pressure Rating: 200 PSI CWP
• Connection Type: FNPT x FNPT
• Dimensions: Length 4.04 inches
