Legend Valve 105-417NL S450NL Inline Checkvalve 1-1/2

Product Description

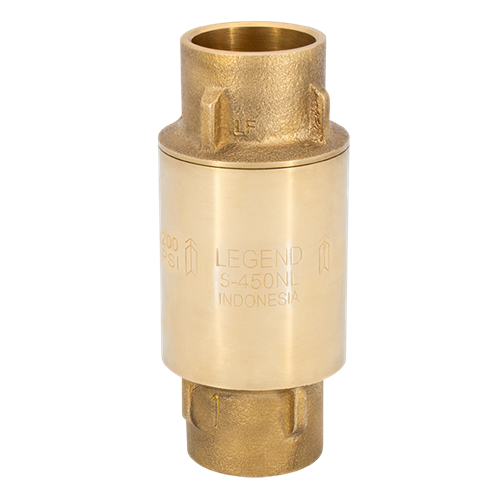

The LEGEND VALVE 105-417NL is an S-450NL series in-line check valve constructed from cast brass. Designed for 1-1/2 inch nominal pipe sizes, it features a sweat x sweat end style. This durable valve is rated for 200 psi pressure and can operate up to 250 degrees F, making it suitable for various plumbing and industrial applications requiring backflow prevention. Its compact design has an inlet to outlet length of 2.33 inches.

• Cast brass body ensures durability and corrosion resistance.
• Sweat x Sweat end connections for secure, permanent installation.
• Rated for 200 psi pressure and temperatures up to 250 degrees F.

Product Highlights

Durable cast brass in-line check valve with sweat connections for reliable backflow prevention.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 105-417NL

Technical Specifications

• Body Material: Cast Brass
• End Style: Sweat x Sweat
• Inlet to Outlet Length: 2.33 in
• Nominal Size: 1-1/2 in
• Pressure Rating: 200 psi
• Model Number: S-450NL
• Temperature Rating: 250 deg F
• Top to Inlet Center: 4.92 in
• Product Type: In-Line Check Valve
• Manufacturer: LEGEND VALVE
• UPC: 662545141206
• ASIN: B0FLKMF41V
• MPN: 105-417NL
