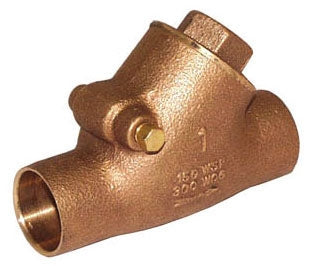

Legend Valve 105-404NL Y-Pattern Check Valve 3/4 Inch

Product Description

The Legend Valve 105-404NL is a lead-free Y-pattern check valve designed for potable water applications. The valve features a nominal size of three fourths inches and is constructed from durable materials that meet industry standards. Its design provides effective flow control and minimizes pressure drop.

• Lead-free construction for safe water use.
• Y-pattern design allows for high flow rates.
• Simple installation in horizontal or vertical positions.

Product Highlights

This check valve is suitable for commercial and industrial use, ensuring compliance with ASME and ANSI standards. Its robust body resists stresses and wear, making it ideal for various plumbing systems.

Product Information

Standard Information

• Manufacturer: Legend Valve
• Product Type: Check Valve

Technical Specifications

• Nominal Size: 3/4 Inch
• End Connection: Female Soldered x Female Soldered
• End to End Distance: 3.41 Inch
• Body Material: JIS H5120 CAC902 Cast Bronze
• Disc Material: JIS H5120 CAC902 Cast Bronze
• Cap Material: JIS H5120 CAC902 Cast Bronze
• Pressure Rating: 150 PSI SWP, 300 PSI CWP
• Applicable Standards: ANSI/ASME B16.18, MSS SP-80, ISO 9002
• Flow Rate: 6.6 gpm
• Temperature Rating: 365 deg F
