Legend Valve 105-403NL Y-Pattern Sweat Swing Check Valve Lead Free

Product Description

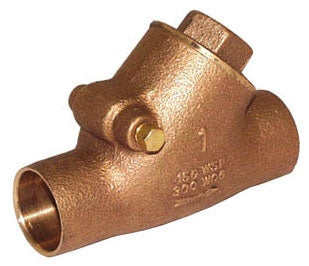

The Legend Valve 105-403NL is a lead-free, Y-pattern swing check valve designed for commercial applications. It features a nominal size of half an inch and offers a high-pressure rating of 300 PSI CWP. The body and trim are made from JIS H5120 CAC902 cast bronze, ensuring durability and resistance to pipeline stresses. This valve is suitable for potable water and complies with ANSI/ASME and ISO standards.

• Lead-free and complies with all plumbing laws
• Y-pattern design for exceptional flow rates
• Easy installation either horizontally or vertically

Product Highlights

The Legend Valve 105-403NL is ideal for applications requiring reliable flow control and is engineered to promote efficient water flow while minimizing pressure drops.

Product Information

Standard Information

• Manufacturer: Legend Valve
• UPC: 662545086286

Technical Specifications

• Type: Y-Pattern
• Nominal Size: 1/2 Inch
• End Connection: Female Soldered x Female Soldered
• End to End Distance: 2.68 Inch
• Body Material: JIS H5120 CAC902 Cast Bronze
• Disc Material: JIS H5120 CAC902 Cast Bronze
• Cap Material: JIS H5120 CAC902 Cast Bronze
• Pressure Rating: 150 PSI SWP, 300 PSI CWP
• Application: Potable Water, Commercial
• Applicable Standards: ANSI/ASME B16.18, MSS SP-80, ISO 9002
