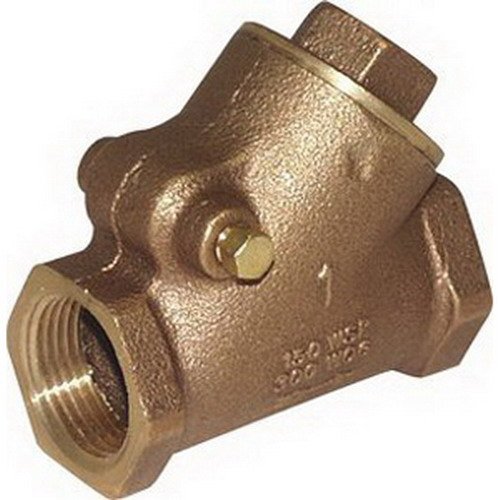

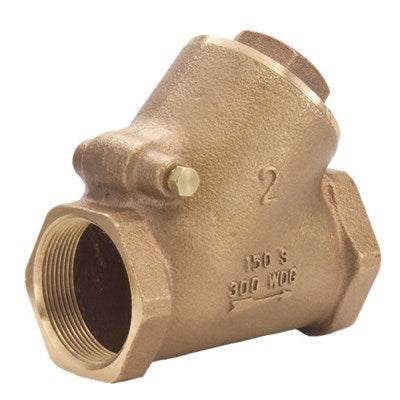

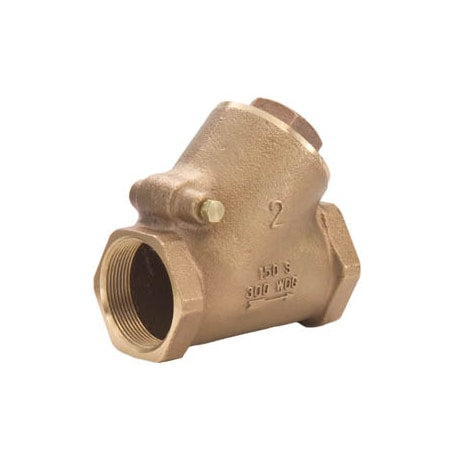

Legend Valve 105-304 T-453 Cast Bronze Y-Pattern Check Valve, 3/4 inches

Product Description

The LEGEND VALVE 105-304 T-453 is a 3/4" cast bronze Y-pattern check valve with female thread end configuration. Designed to prevent backflow in commercial and industrial applications. It can be installed horizontally or vertically. The large, integral seat and disc are tilted inward at 45 degrees to minimize pressure drop.

• Heavy-duty, full-pattern bronze construction resists pipeline stresses and distortion
• Y-pattern body permits exceptional flow rates, typically required in commercial applications
• Large, integral seat and disc are tilted inward at 45 deg to minimize pressure drop

Product Highlights

This Y-pattern check valve is ideal for preventing backflow and ensuring optimal flow rates in various applications.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 105-304
• Country of Origin: Indonesia

Technical Specifications

• Material: Bronze
• Pipe Size: 3/4"
• WOG: 300
• WSP: 150
• Body Material: Bronze
• End Style: FNPT
• Flow Rate: 6.6 gpm
• Inlet to Outlet Length: 2.78 in
• Nominal Size: 3/4 in
• Port Type: Full
• Pressure Rating: 300 psi CWP
• Series: T-453
• Top to Inlet Center: 2.01 in
• Trim Material: Cast Bronze
• Type: Y-Pattern
• Connection Type: FNPT x FNPT
• Size: 3/4
• Connection: FPT x FPT
• Application: COMMERCIAL, INDUSTRIAL
• Inclusions/Features: BRASS HINGE PIN, INTEGRAL SEAT, VERTICAL/HORIZONTAL INSTALLATION
• End Connection: 3/4 INCH FIP X 3/4 INCH FIP
• End to End Distance: 2.76 INCH
• Disc Material: Bronze
• Cap Style: THREADED
• Cap Material: Bronze
• Model: T-453
• Temperature Rating: 365 deg F
