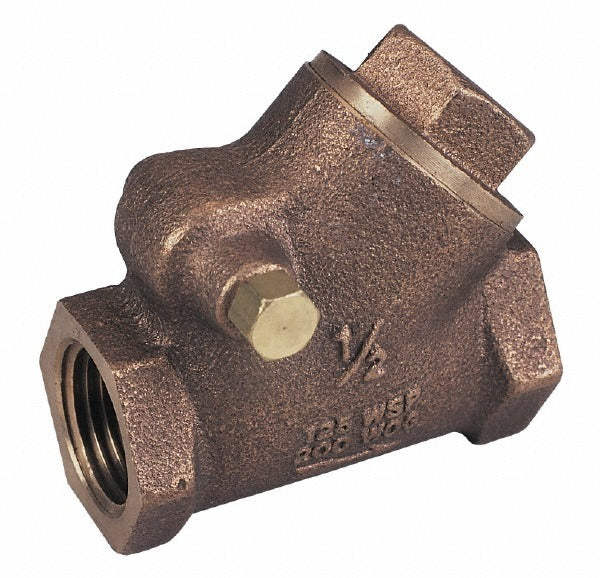

Legend Valve 105-303 Bronze Check Valve 1/2 Inch Fnpt

Product Description

The LEGEND VALVE 105-303 is a bronze Y-pattern check valve designed for 1/2 inch pipe connections with female NPT (FNPT) inlets and outlets on both ends. Check valves allow flow in one direction and close automatically to prevent backflow, protecting pumps, water heaters, and distribution lines from reverse pressure. The Y-pattern body geometry reduces flow restriction compared to traditional swing-check designs, making this valve well suited for systems where pressure drop is a concern. Licensed plumbers and pipefitters install this type of fitting in residential and light commercial plumbing systems. The bronze body provides corrosion resistance in potable water and hydronic applications.

This check valve is appropriate for 1/2 inch plumbing lines where backflow prevention is required. Typical applications include domestic hot and cold water supply lines, boiler feed lines, and hydronic heating circuits. The FNPT x FNPT end connections are compatible with standard threaded pipe fittings per ANSI/ASME B1.20.1 and ANSI/ASME B16.18, which cover pipe threads and cast copper alloy fittings respectively. It is sold individually and suited for both new construction and retrofit service work.

Key Features

• Y-pattern body design reduces pressure drop across the valve
• Bronze body construction resists corrosion in water and hydronic service
• FNPT x FNPT end connections on both inlet and outlet
• Meets ANSI/ASME B1.20.1 and ANSI/ASME B16.18 standards
• 1/2 inch pipe size fits common residential and light commercial plumbing lines

Compatibility

Designed as an OEM-style replacement or new-installation check valve for 1/2 inch threaded pipe systems in residential and light commercial plumbing and hydronic heating applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and relieve system pressure before removing or installing any threaded fitting. Use thread sealant tape or compound rated for potable water on all NPT connections. Verify flow direction markings on the valve body and orient accordingly before making up the connection.
