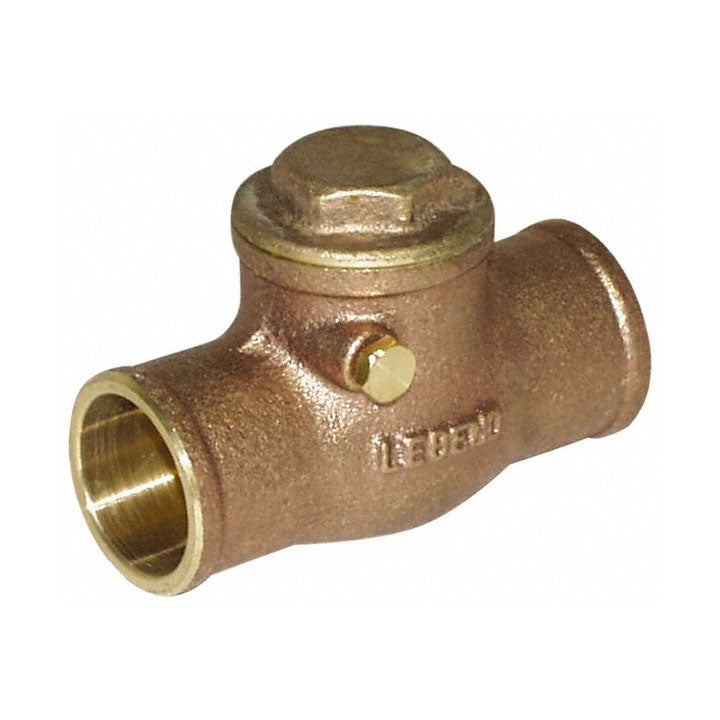

Legend Valve 105-207NL 1-1/2 S-451 No Lead Check Valve

Product Description

The Legend Valve 105-207NL is a 1-1/2 inch swing check valve designed for durability and compliance. This valve features a lead-free construction and is ideal for plumbing installations where safety and reliability are essential. It meets low lead regulations and has a pressure rating of 200 psi CWP.

• Durable cast brass body
• Full port design for minimal flow restriction
• Forged brass hinge pin for smooth operation

Product Highlights

Featuring an integral seat and disc sealing surfaces, the Legend Valve 105-207NL ensures reliable performance in various plumbing applications. The T-pattern body allows installation in both vertical and horizontal positions.

Product Information

Standard Information

• Manufacturer: Legend Valve
• MPN: 105-207NL

Technical Specifications

• Body Material: Cast Brass
• Low Lead Compliance: Yes
• Nominal Size: 1-1/2 inches
• Pressure Rating: 200 psi CWP
• Top to Inlet Center: 2.17 inches
• Inlet to Outlet Length: 4.49 inches
• End Style: C
• Port Type: Full
• Trim Material: Forged Brass
• Series: S-451NL
• Domestic/Import: Import
