LEGEND VALVE 105-205 1 S-451 CHECK VALVE C 1 in

Product Description

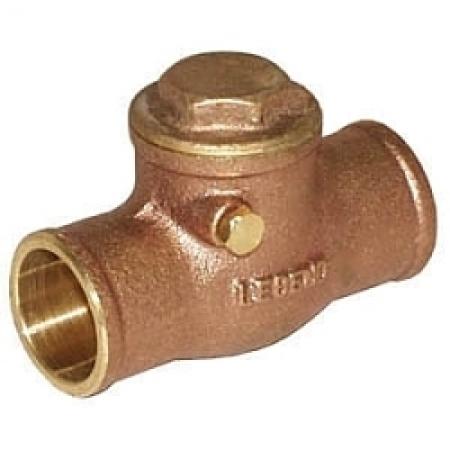

The LEGEND VALVE 105-205 is a durable swing check valve designed for various plumbing applications. It features a nominal size of one inch and is suitable for pressures up to two hundred psi CWP. The body is made from cast brass, ensuring longevity in both commercial and residential settings.

• Full port design allows for maximum flow.
• Forged brass hinge pin ensures smooth operation.
• Can be installed in both vertical and horizontal orientations.

Product Highlights

The S-451 series is known for its high-quality construction and reliability. It complies with multiple standards, making it a suitable choice for high-performance plumbing systems.

Product Information

Standard Information

• Manufacturer: LEGEND VALVE
• Series: S-451

Technical Specifications

• Body Material: Cast Brass
• End Style: C
• Nominal Size: 1 in
• Pressure Rating: 200 psi CWP
• Inlet to Outlet Length: 3.54 in
• Top to Inlet Center: 1.69 in
• Port Type: Full
• Trim Material: Forged Brass
