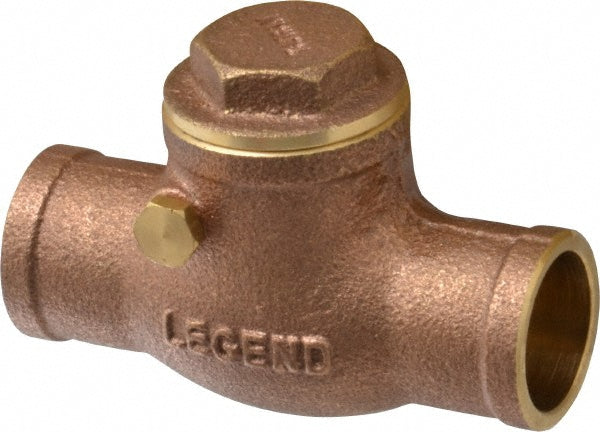

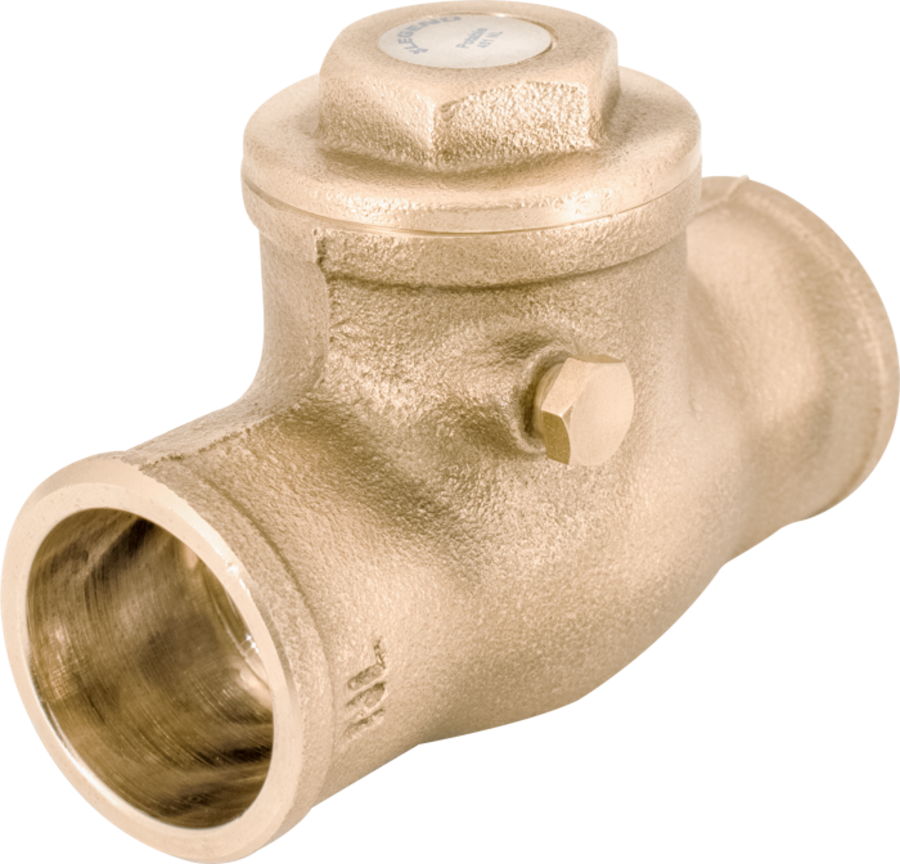

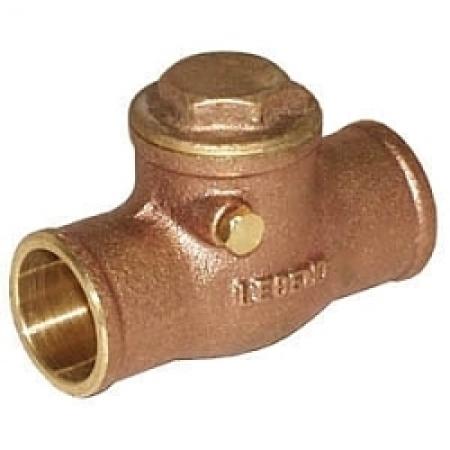

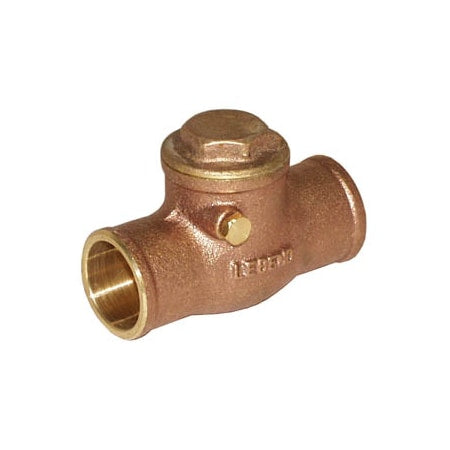

Legend Valve 105-204 Check Valve 3/4 inches Swing Brass S-451

Product Description

The LEGEND VALVE 105-204 check valve is designed for controlling fluid flow in commercial and residential applications. Constructed with a durable cast brass body, this swing-type valve allows unrestricted flow in one direction while preventing backflow. It features a full port and integral seat design to prevent leakage under pressure.

• Durable, full-pattern cast brass body
• Large, integral seat and disc sealing surfaces
• Forged brass hinge pin assures smooth, non-binding disc operation

Product Highlights

This 3/4" brass check valve is suitable for pipelines, pumps, and other fluid handling systems, and withstands pressures up to 200 psi CWP.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 105-204
• Country of Origin: Indonesia

Technical Specifications

• Size: 3/4IN
• Type: Check Valve
• Valve Options: Swing
• Body Material: Cast Brass
• Domestic/Import: Import
• End Style: C
• Inlet to Outlet Length: 3.21 in
• Low Lead Compliance: No
• Nominal Size: 3/4 in
• Port Type: Full
• Pressure Rating: 200 psi CWP
• Series: S-451
• Top to Inlet Center: 1.59 in
• Trim Material: Forged Brass
• Connection Type: Sweat x Sweat
• MPN: 105-204
• Width: 2.650
• ItemPackageQuantity: 1
• Length: 3.750
• End Connection: Soldered x Soldered
• Pipe Size: 3/4
• Item Number: 105-204
• Brand: Legend Valves
• Application: Commercial and Residential
• End to End Distance: 3.03IN
• Material: Brass
• Pressure: 200PSI WOG
• Product Type: Swing
• UNSPSC Code: 40141622
