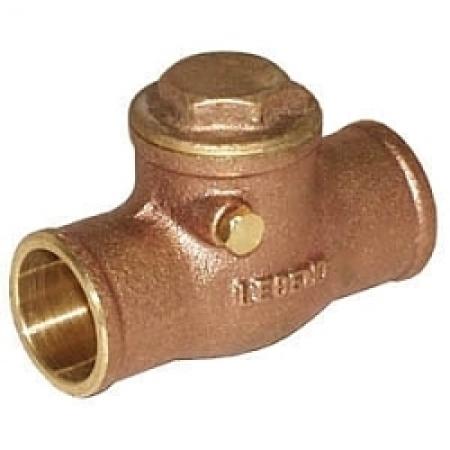

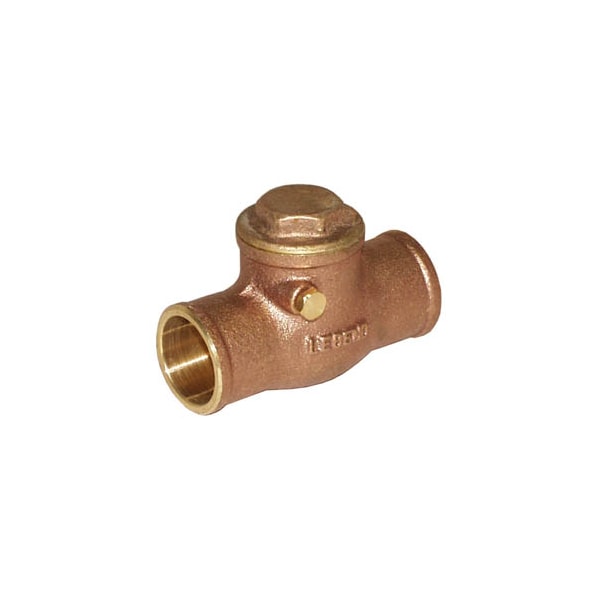

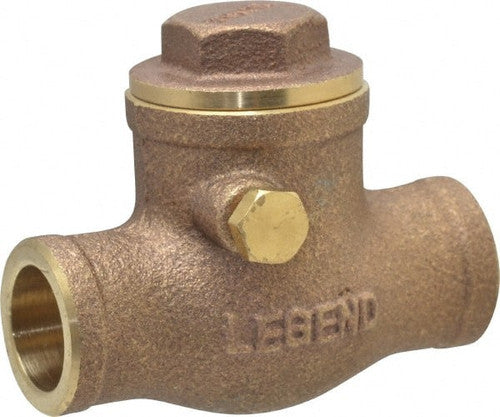

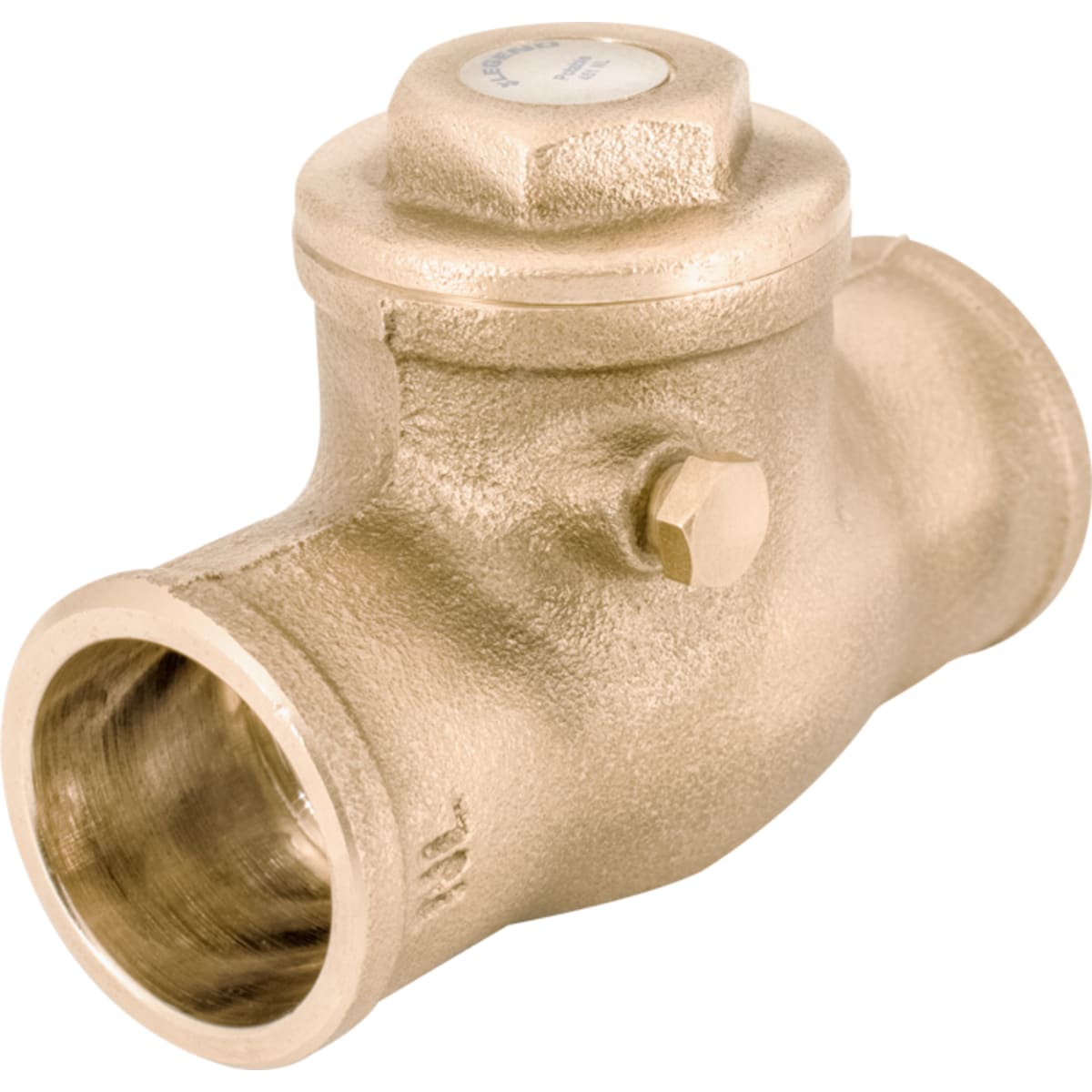

Legend Valve 105-203 S-451 Check Valve 1/2 inches C

Product Description

The Legend Valve 105-203 S-451 is a swing check valve with a 1/2 in nominal size and a C end style. Constructed with a durable, full-pattern cast brass body, this valve prevents backflow while ensuring full flow performance. It features a large, integral seat and disc sealing surfaces and a forged brass hinge pin for smooth operation. Recommended for commercial and residential applications.

• Durable, full-pattern cast brass body
• Large, integral seat and disc sealing surfaces
• Forged brass hinge pin assures smooth, non-binding disc operation

Product Highlights

This Legend Valve swing check valve features a cast brass body, forged brass trim, and is suitable for vertical or horizontal installations.

Product Information

Standard Information

• Brand: Legend Valve
• Manufacturer Part Number: 105-203
• Country of Origin: Indonesia

Technical Specifications

• Body Material: Cast Brass
• Domestic/Import: Import
• End Style: C
• Inlet to Outlet Length: 1.61 in
• Low Lead Compliance: No
• Nominal Size: 1/2 in
• Port Type: Full
• Pressure Rating: 200 psi CWP
• Series: S-451
• Top to Inlet Center: 1-1/2 in
• Trim Material: Forged Brass Disc
• Manufacturer: LEGEND VALVE
• Size: 1/2"
• Type: Swing Check Valves
• Standards: ANSI/ASME B1.20.1, ANSI/ASME B16.18
• UPC: 662545002101
• Ratings: 200 CWP
• Valve Type: Check Swing
• End Connection: Soldered x Soldered
• Pipe Size: 1/2
• Connection Type: Sweat x Sweat
