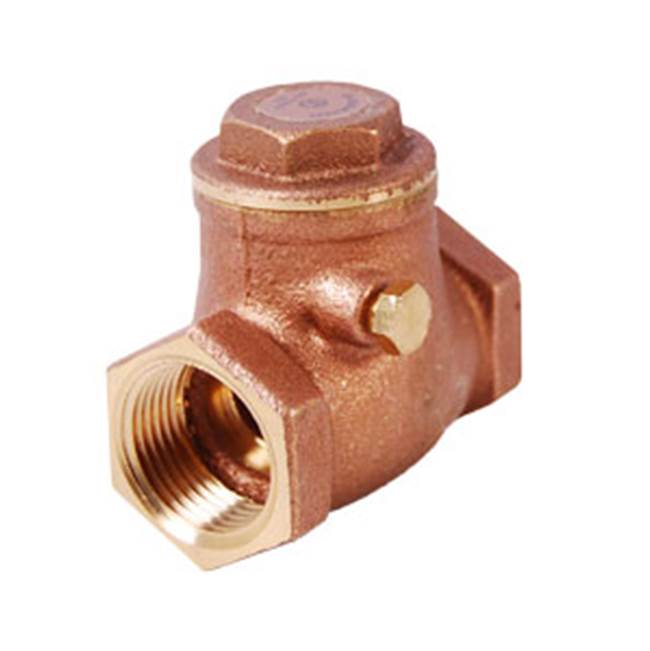

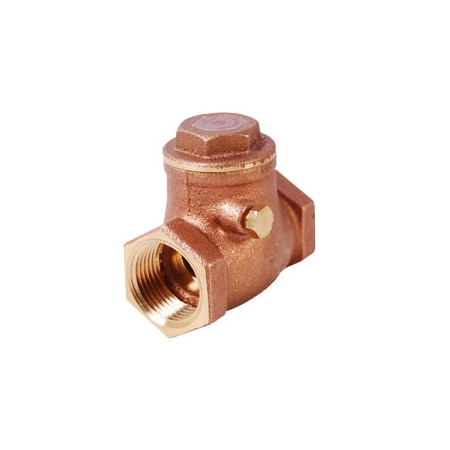

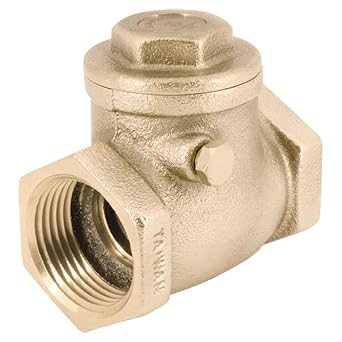

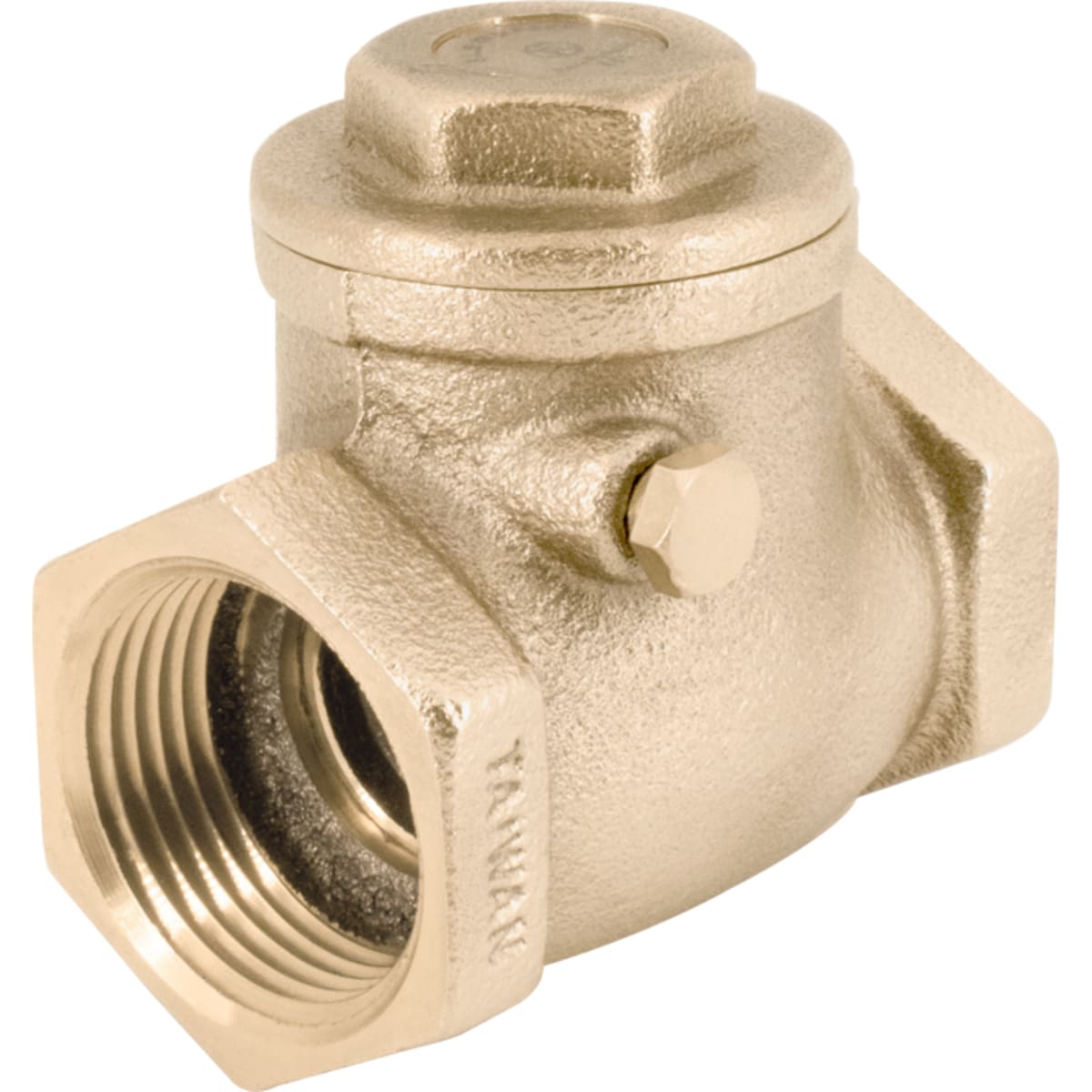

Legend Valve 105-111nl 4 inches fip x fip forged brass swing check valve

Product Description

The Legend Valve 105-111NL is a 4" FIP x FIP, No Lead Forged Brass Swing Check Valve. This valve is designed for potable water applications. It features a forged brass hinge pin, large integral seat, and non-binding disc. Constructed with UNS C87850 cast brass alloy body material and UNS C69300 forged brass alloy disc material.

• Connection Type FNPT x FNPT
• Body Material Brass
• Size 4"
• Standards 200 CWP

Product Highlights

The Legend Valve 105-111NL is ideal for preventing backflow in plumbing systems, ensuring water flows in one direction.

Product Information

Standard Information

• Brand: Legend Valve
• Manufacturer Part Number: 105-111NL
• Country of Origin: Indonesia

Technical Specifications

• Size: 4"
• Type: Swing Check Valves
• Connection_Type: FIP
• Standards: 200 CWP
• Body Material: UNS C87850 CAST BRASS ALLOY
• Country of Origin: Indonesia
• End Connection: FEMALE THREADED X FEMALE THREADED
• Nominal Size: 4 INCH X 4 INCH
• Applicable Standard: ANSI/ASME B1.20.1, NSF/ANSI 372, ISO 9002
• Application: POTABLE WATER
• Inclusions/Features: FORGED BRASS HINGE PIN, LARGE INTEGRAL SEAT AND NON-BINDING DISC
• Pressure Rating: 200 PSI CWP
• End to End Distance: 6.85 INCH
• Disc Material: UNS C69300 FORGED BRASS ALLOY
• Cap Material: UNS C87850 CAST BRASS ALLOY
• Lead-Free: LEAD-FREE
• Model: T-451NL
• Brand: Legend Valve
• Manufacturer: Legend Valve
• Number of Items: 1
• Model Number: T-451NL
• Manufacturer Part Number: T-451NL
• Item Type Name: Check Valves
• Included Components: Valve
