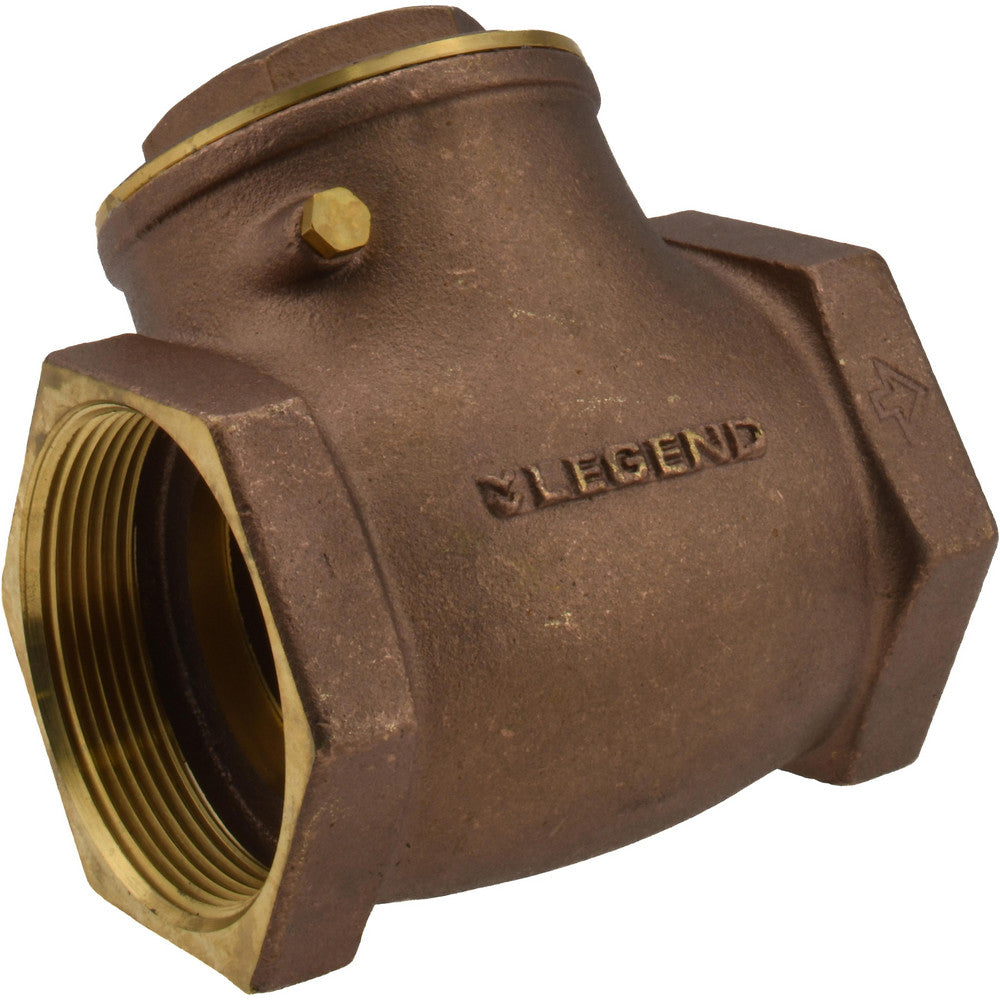

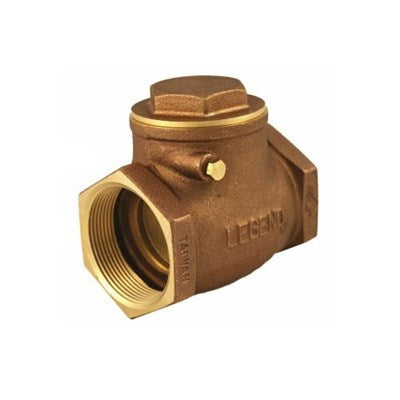

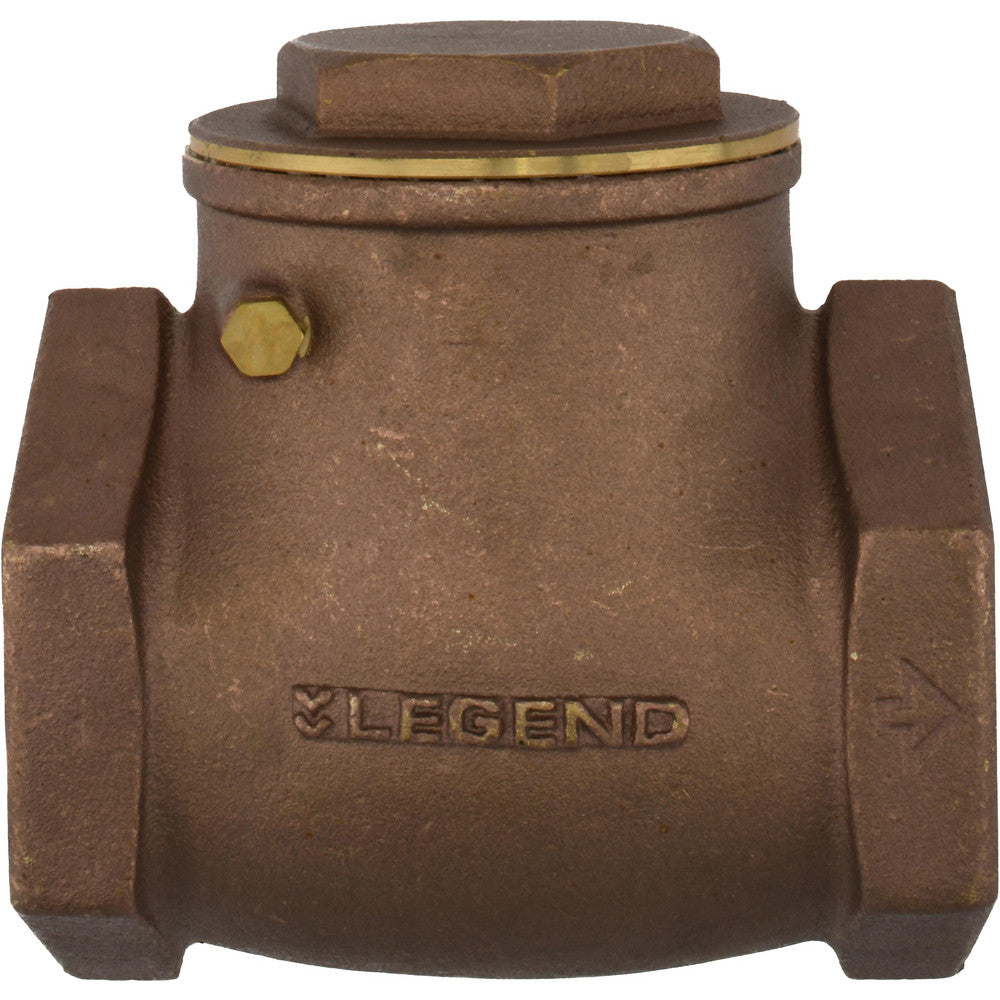

Legend Valve 105-110 3 inches T-451 Check Valve

Product Description

The LEGEND VALVE 105-110 is a 3" T-451 check valve. It features a durable, full-pattern cast brass body and a large, integral seat and disc sealing surface. The forged brass hinge pin assures smooth, non-binding disc operation. The T-pattern body permits vertical or horizontal installations. Suitable for commercial and residential applications.

• Durable, full-pattern cast brass body
• Large, integral seat and disc sealing surfaces
• Forged brass hinge pin assures smooth, non-binding disc operation

Product Highlights

This 3" brass swing check valve features a full port and a T-pattern body design for versatile installation.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 105-110
• Country of Origin: Indonesia

Technical Specifications

• Body Material: Cast Brass
• End Style: FNPT
• Inlet to Outlet Length: 5.79 in
• Nominal Size: 3 in
• Port Type: Full
• Pressure Rating: 200 psi CWP
• Series: T-451
• Top to Inlet Center: 3.82 in
• Trim Material: Forged Brass
• Type: Swing Check Valves
• Connection Type: FNPT x FNPT
• Standards: ANSI/ASME B16.18; ANSI/ASME B1.20.1
• Brand: LEGEND VALVE
• MPN: 105-110
• Valve Type: Inline
• End Connection: FNPT x FNPT
• Pipe Size: 3
• Manufacturer: Legend
• Connection: FPT x FPT
• Domestic/Import: Import
