Legend Valve 105-107 T-451 Check Valve 1-1/2 inches

Product Description

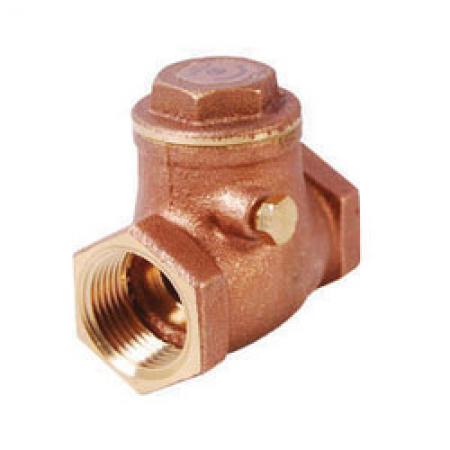

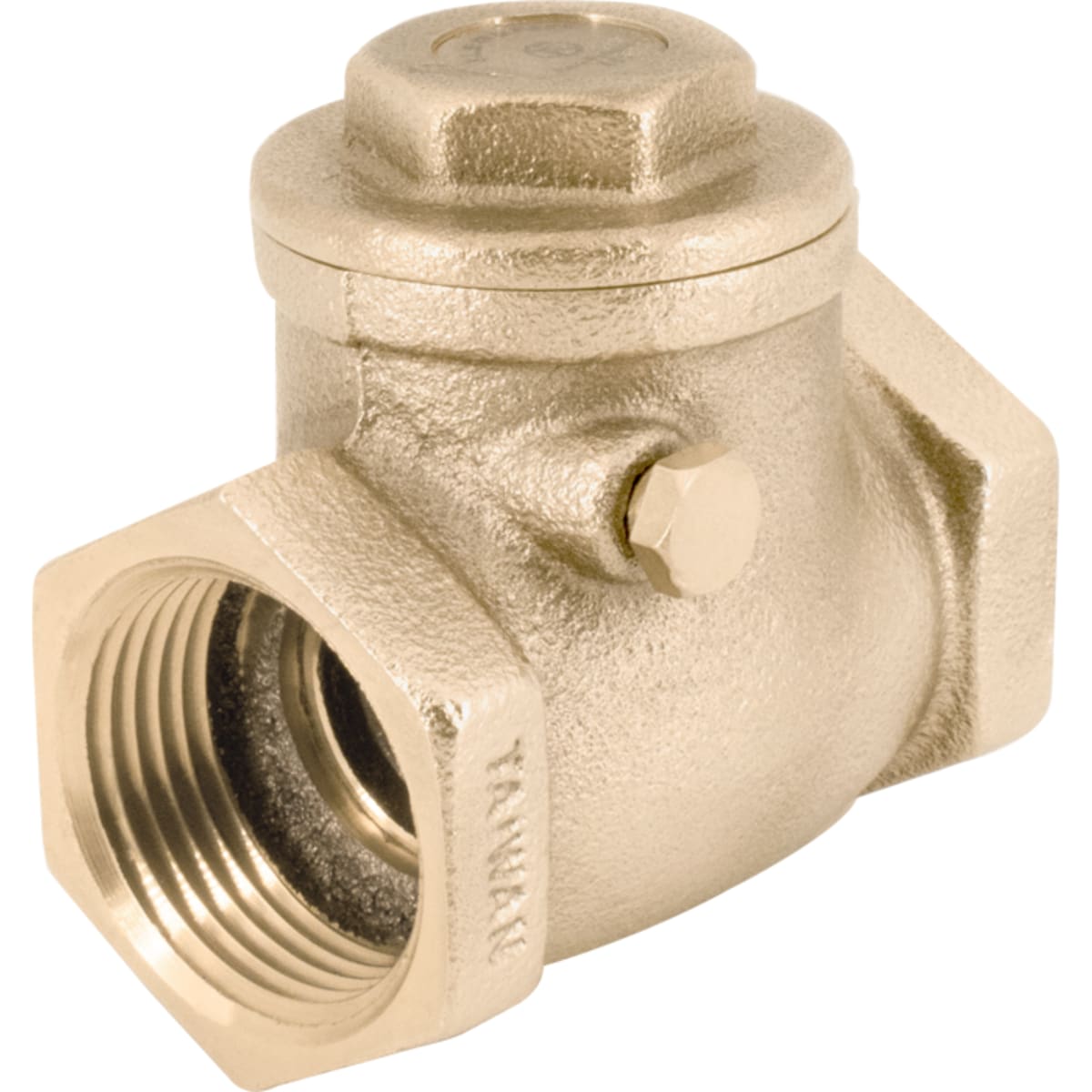

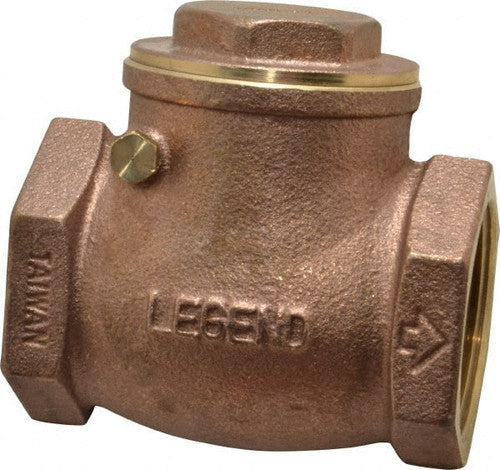

The Legend Valve 105-107 T-451 series swing check valve prevents backflow and offers full flow performance. Constructed of a durable, full-pattern cast brass body with a forged brass trim, it features large, integral seat and disc sealing surfaces. The T-pattern body allows for vertical (upward flow only) or horizontal installations. This valve is suitable for commercial and residential applications.

• Durable, full-pattern cast brass body
• Large, integral seat and disc sealing surfaces
• Forged brass hinge pin assures smooth, non-binding disc operation

Product Highlights

The Legend Valve T-451 check valve is designed to prevent backflow with a full port, and can be installed vertically or horizontally.

Product Information

Standard Information

• Brand: Legend Valve
• Manufacturer Part Number: 105-107
• Country of Origin: Indonesia

Technical Specifications

• Body Material: Cast Brass
• Domestic/Import: Import
• End Style: FNPT
• Inlet to Outlet Length: 3.48 in
• Low Lead Compliance: No
• Nominal Size: 1-1/2 in
• Port Type: Full
• Pressure Rating: 200 psi CWP
• Series: T-451
• Top to Inlet Center: 2.17 in
• Trim Material: Forged Brass Disc
• Type: Swing Check Valves
• Connection Type: FNPT x FNPT
• Standards: ANSI/ASME B1.20.1, ANSI/ASME B16.18
• Ratings: 200 CWP
• Manufacturer: LEGEND
• Manufacturer #: 105-107
• Valve Type: In-Line
• End Connection: FNPT x FNPT
• Pipe Size: 1-1/2
