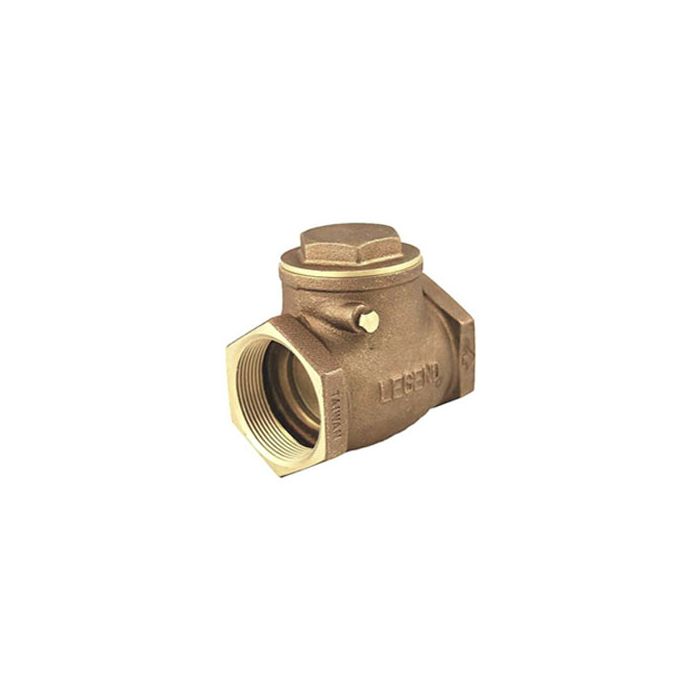

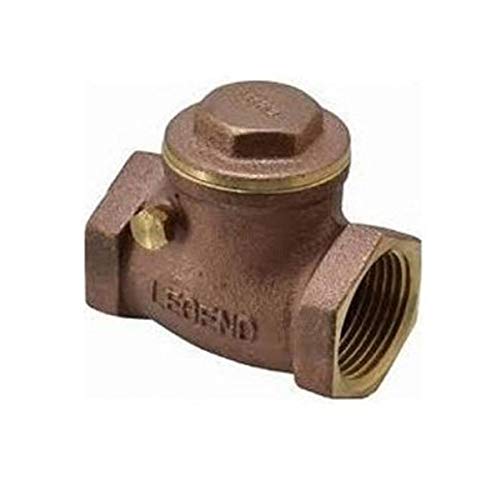

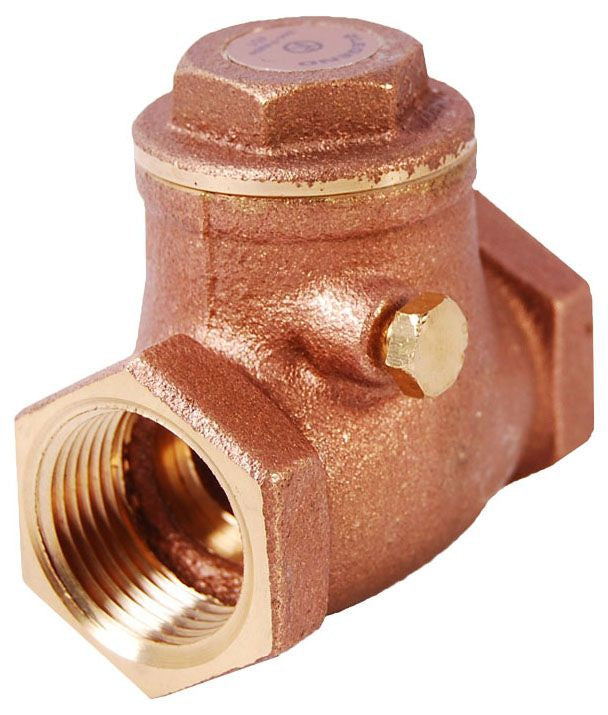

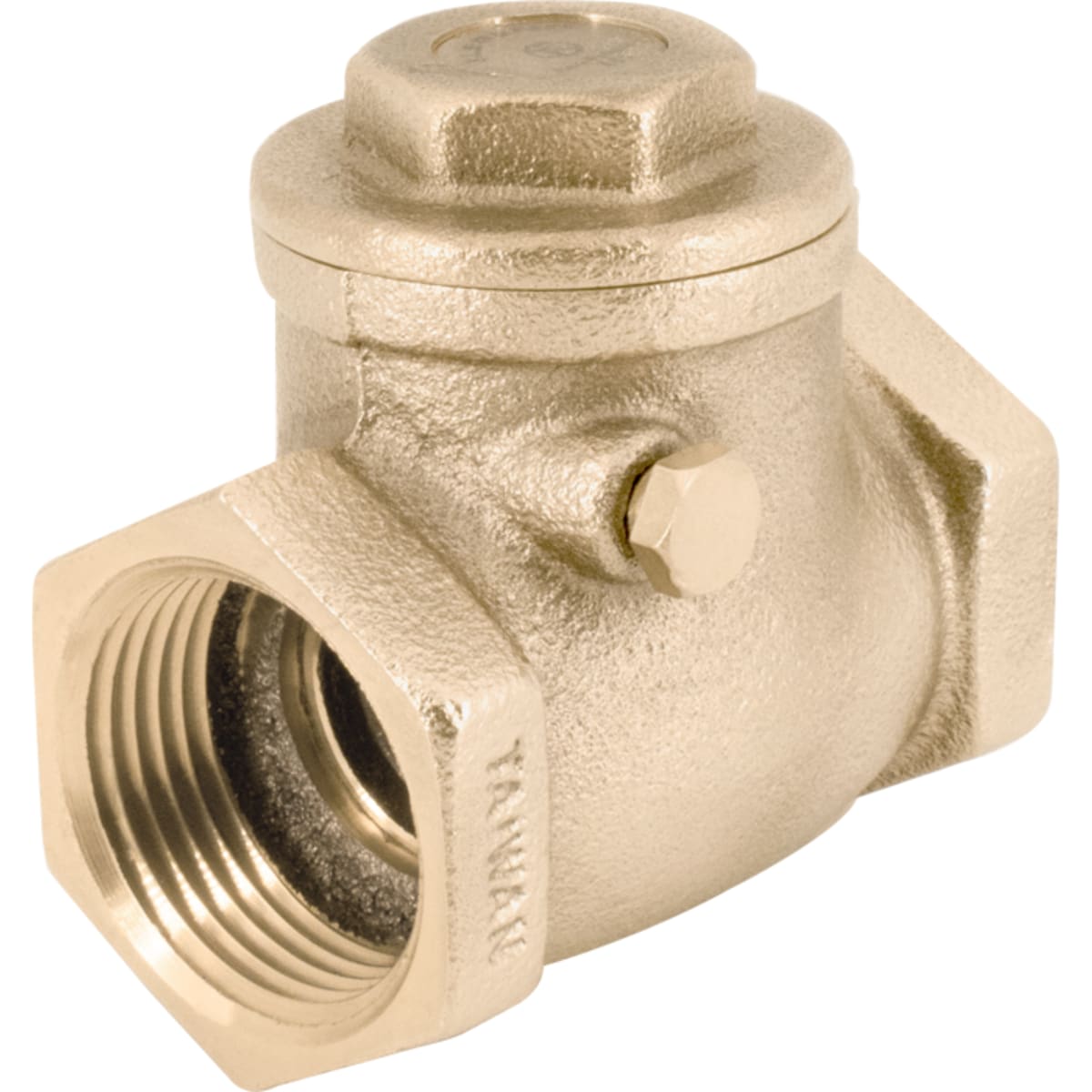

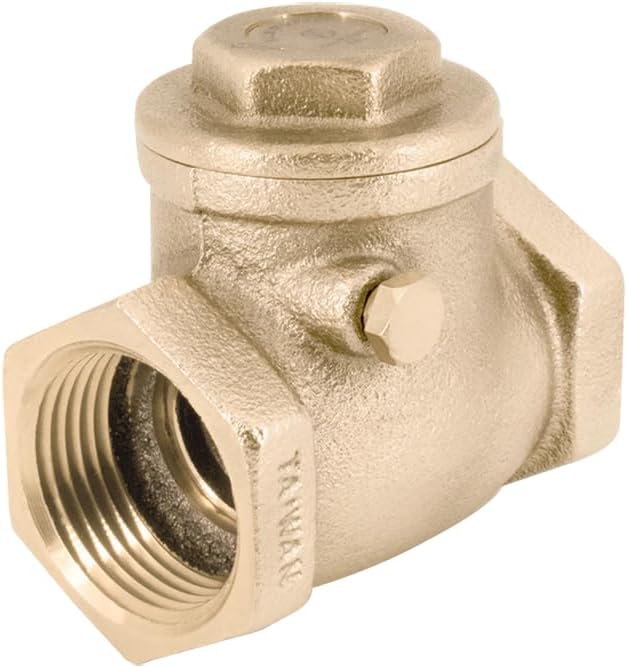

Legend Valve 105-103NL T-451 1/2 Ips Chk Vl Lead Free

Product Description

The Legend Valve 105-103NL check valve features a swing, full T-pattern design with a nominal size of 1/2 inch x 1/2 inch. Constructed with UNS C46500 cast brass body, disc, and cap, it ensures durability. This lead-free valve is suitable for potable water applications with a pressure rating of 200 PSI CWP Non-Shock.

• Forged Brass Hinge Pin Assures Smooth, Non-Binding Disc Operation
• T-Pattern Body Permits Either Vertical (Upward Flow Only) or Horizontal (Assembly Cap Upright) Installations
• Lead-Free

Product Highlights

Ensures smooth, non-binding disc operation with its forged brass hinge pin. Its T-pattern body allows for versatile installation.

Product Information

Standard Information

• Brand: Legend Valve
• Manufacturer Part Number: 105-103NL
• Country of Origin: USA

Technical Specifications

• Applicable Standard: ANSI/ASME B1.20.1/B16.18, NSF/ANSI 61/372, ISO 9002
• Body Material: UNS C46500 Cast Brass
• Cap Material: UNS C46500 Cast Brass
• Disc Material: UNS C46500 Cast Brass
• End Connection: Female Threaded x Female Threaded
• End To End Distance: 2.09 Inch
• Inclusions Features: Forged Brass Hinge Pin, Pin Retaining Screw, Cast Brass Assembly Cap, Large Integral Seat and Disc Sealing, Non-Binding Disc
• Nominal Size: 1/2 Inch x 1/2 Inch
• Pressure Rating: 200 psi
• Type: Swing, Full T-Pattern
• Manufacturer Part Number: 105-103NL
• Series: T-451NL
• Additional Information: Lead-Free; Material Fiber (Gasket), UNS C46500 Forged Brass (Pin Retaining Screw/Hinge Pin)
• Inlet to Outlet Length: 2.07 in
• Low Lead Compliance: Yes
• Port Type: Full
• Trim Material: Forged Brass
• Top to Inlet Center: 1.42 in
• Connection Type: FNPT
• Media: Water
• Seal Material: Brass
• Softgoods Material: Fiber
